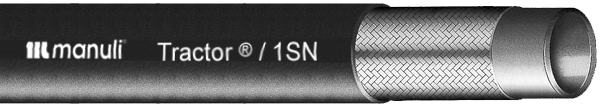

MANULI TRACTOR® / 1SN
EN 853 1SN
Click to Veiw PDF


MAIN APPLICATIONS
Low-medium pressure lines, return lines

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C

RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: One high tensile steel braid

COVER: Environment resistant synthetic rubber

APPLICABLE SPECS: EN 853 1SN - SAE 100 R1AT - ISO 1436 1SN/R1AT

TYPE APPROVALS: ABS, BV (DN 5÷51), DNV, FRAS (DN 5÷12), GL, (DN 5÷51), GOST-R, KSR, LR, MSHA

KEY PERFORMANCE
EN/DIN rated working pressure - Smooth cover FRAS approved (DN 5÷12)



PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF3000
FITTING 		MF2000
FITTING

DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft

T1SN-04 6 -4 1/4" 11.2 0.44 13.2 0.52 225 3260 900 13050 100 3.94 220 0.15 OPF MF+M03400-04
T1SN-05 8 -5 5/16" 12.8 0.50 14.8 0.58 215 3110 850 12320 114 4.49 270 0.18 OPF MF+M03400-05
T1SN-06 10 -6 3/8" 15.1 0.59 17.1 0.67 180 2610 720 10440 127 5.00 340 0.23 OPF MF+M03400-06
T1SN-08 12 -8 1/2" 18.1 0.71 20.1 0.79 160 2320 640 9280 178 7.01 400 0.27 OPF MF+M03400-08
