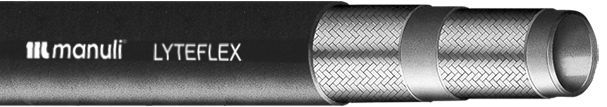

MANULI LYTE-FLEX® SAE 100 R16
Click to Veiw PDF


MAIN APPLICATIONS
Medium pressure lines with installation constraints

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C

RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycols and polyglycol
based oils, synthetic ester based oils, oils in aqueous emulsion, water

INSERT: MF2000® - MULTIFIT TYPE

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Two high tensile steel braids

COVER: Environment resistant synthetic rubber

APPLICABLE SPECS: SAE 100 R16 - ISO 11237-1 R16; in addition: DN 16, 19 SAE 100 R17 - ISO 11237-1 R17

TYPE APPROVALS: GOST-R, LR

KEY PERFORMANCE
SAE 100 R2 pressure rating - Lightness and flexibility



PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF3000
FITTING 		MF2000
FITTING

DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft

H01084006 6 -4 1/4" 11.6 0.46 13.2 0.52 350 5070 1400 20300 50 1.97 265 0.18 OPF MF+M03400-04
H01084008 8 -5 5/16" 12.9 0.51 14.5 0.57 297 4300 1190 17250 55 2.17 290 0.19 OPF MF+M03400-05
H01084010 10 -6 3/8" 15.4 0.61 17.0 0.67 280 4060 1120 16240 63 2.48 385 0.26 OPF MF+M03400-06
H01804012 12 -8 1/2" 18.5 0.73 20.3 0.80 245 3550 980 14210 88 3.46 465 0.31 OPF MF+M03400-08
H01084016 16 -10 5/8" 22.2 0.87 24.0 0.94 210 3040 840 12180 100 3.94 630 0.42 OPF MF+M03400-10
H01084019 19 -12 3/4" 25.6 1.01 27.7 1.09 210 3040 840 12180 120 4.72 790 0.53 OPF MF+M03400-12
H01084025 25 -16 1" 32.3 1.27 34.6 1.36 140 2030 560 8120 150 5.91 1090 0.73 OPF MF+M03400-16
