MAIN APPLICATIONS
Medium and high pressure hydraulic lines with installation constraints, pilot lines, return, drain, and suction lines
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C
RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester-based oils
(up to 212°F I 100°C), glycols and polyglycols, mineral oils in aqueous emulsion, water

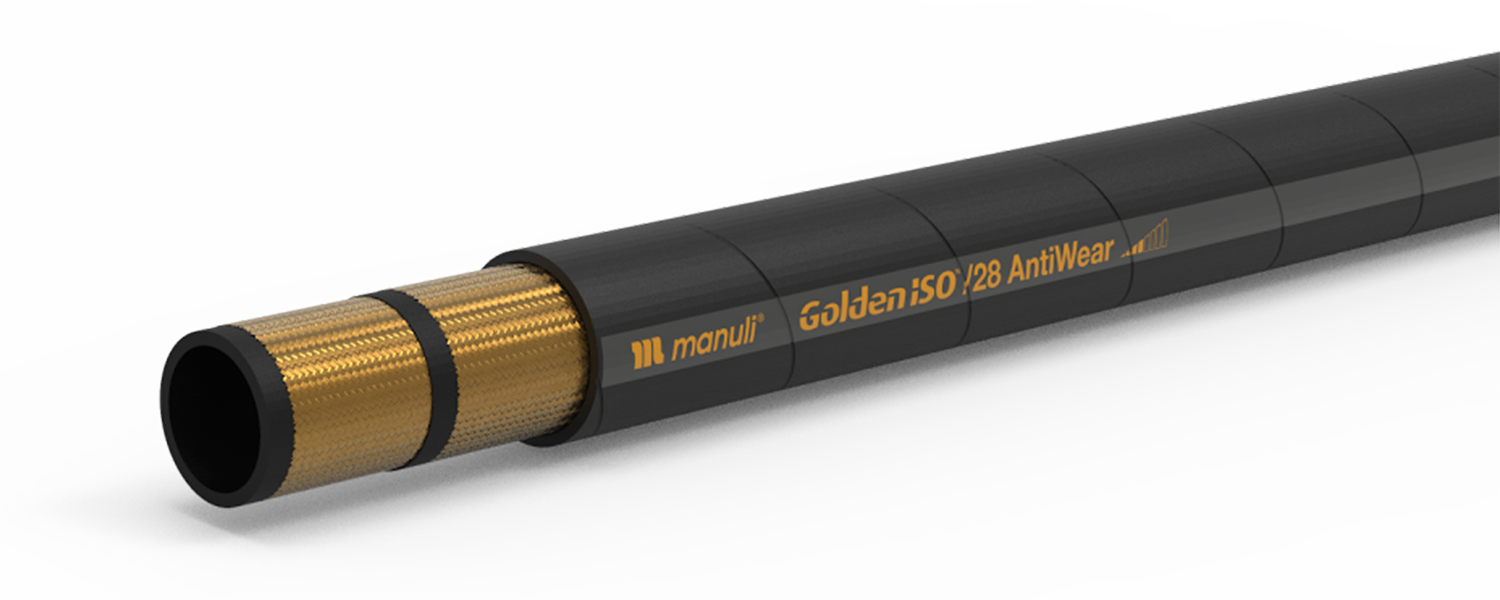

TUBE: Synthetic rubber
REINFORCEMENT: Two wire braids
COVER: High abrasion resistant synthetic rubber
APPLICABLE SPECS: ISO 18752 Grade A, SAE J517 Type 100 R19
TYPE APPROVALS: MSHA, GOST-R
KEY PERFORMANCE
Extreme abrasion resistance • Approved at 200.000 impulse cycles, 133% WP at T=100°C (ISO 18752 Grade A) • Very low bend radius to suit restricted space installations • High robust and compact hose structure compared to rated pressure • High environmental agents resistance • Vacuum resistance according to SAE 100R4 requirements
|
|
|
|
|
|
|
|
|
|
PART REF.
|
HOSE SIZE
|
R.O.D.
|
O.D.
|
MAX W.P.
|
BURST
PRESSURE
|
MIN. BEND
RADIUS
|
WEIGHT
|
MF2000
FITTING
|
|
DN
|
dash
|
inch
|
mm
|
inch
|
mm
|
inch
|
bar
|
psi
|
bar
|
psi
|
mm
|
inch
|
g/m
|
lb/ft
|
|
|
Gl28-04
|
6
|
-4
|
1/4"
|
11.6
|
0.46
|
13.2
|
0.52
|
280
|
4060
|
1120
|
16240
|
50
|
1.97
|
260
|
0.17
|
MF+M00120-04
|
|
Gl28-05
|
8
|
-5
|
5/16"
|
12.9
|
0.51
|
14.5
|
0.57
|
280
|
4060
|
1120
|
16240
|
55
|
2.17
|
280
|
0.19
|
MF+M00120-05
|
|
Gl28-06
|
10
|
-6
|
3/8"
|
15.4
|
0.61
|
17.0
|
0.67
|
280
|
4060
|
1120
|
16240
|
63
|
2.48
|
380
|
0.26
|
MF+M00120-06
|
|
Gl28-08
|
12
|
-8
|
1/2"
|
18.5
|
0.73
|
20.3
|
0.80
|
280
|
4060
|
1120
|
16240
|
80
|
3.15
|
495
|
0.33
|
MF+M00120-08
|
|
Gl28-10
|
16
|
-10
|
5/8"
|
22.7
|
0.89
|
24.7
|
0.97
|
280
|
4060
|
1120
|
16240
|
90
|
3.54
|
730
|
0.49
|
MF+M00120-10
|
|
Gl28-12
|
19
|
-12
|
3/4"
|
27.1
|
1.07
|
29.3
|
1.15
|
280
|
4060
|
1120
|
16240
|
120
|
4.72
|
1060
|
0.71
|
MF+M00120-12
|
