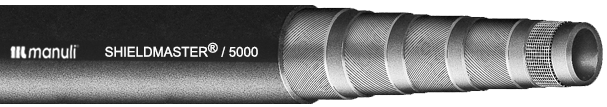

MANULI SHIELDMASTER® / 5000
OUTSTANDING ABRASION RESISTANCE
Click to Veiw PDF


MAIN APPLICATIONS
Heavy duty power lines with extreme abrasion conditions (e.g. bunched-up hoses, localised contacts with sharp edges and extraneous bodies/particles, wear due to sliding over the ground, alternative to spring guards)

CONTINUOUS SERVICE TEMPERATURE RANGE
-49°F / +212°F
-45°C / +100°C

RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester based oils (up to 212°F 100°C), glycols and polyglycols, mineral oils in aqueous emulsion, water

RANGE: Halogen-Free Hose

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Two high tensile steel braids (DN 6÷12). Four high tensile steel spirals (DN 16÷25)

COVER: Composite bi-layer structure with oustanding abrasion resistance

APPLICABLE SPECS: MANULI® Design

TYPE APPROVALS: GOST-R

KEY PERFORMANCE
Outstanding abrasion and ozone resistance • Compact overall dimensions • Easy assembly and mounting operations (no protection sleeves required) • Isobaric pressure rating • suitable for very cold environments



PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF3000
FITTING 		MF2000
FITTING

DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft
H01032006 6 -4 1/4" - - 13.6 0.54 345 5000 1380 20010 50 1.97 260 17 OPB MF+M00120-04
H01032008 8 -5 5/16" - - 15.1 0.59 345 5000 1380 20010 55 2.17 330 22 OPB MF+M00120-05
H01032010 10 -6 3/8" - - 17.2 0.68 345 5000 1380 20010 65 2.56 405 27 OPB MF+M00120-06
H01032012 12 -8 1/2" - - 22.2 0.87 345 5000 1380 20010 120 4.72 655 44 OPS|OPNS MF+M00910-08
H01032016 16 -10 5/8" - - 27.2 1.07 345 5000 1380 20010 200 7.87 990 66 OPS|OPNS MF+M00910-10
H01032019 19 -12 3/4" - - 31.2 1.23 345 5000 1380 20010 230 9.06 1385 93 OPS|OPNS IL+M01300-12
H01032025 25 -16 1" - - 38.1 1.50 345 5000 1380 20010 267 10.51 1935 130 OPS|OPNS IL+M01300-16
