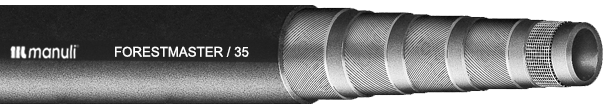

Foremaster/ 35
Click to Veiw PDF


APPLICATIONS & FLUIDS

  • High pressure power lines for general hydraulics
  • Designed for forestry machines, booms and harvester heads, harsh environments and severe abrasion
  • Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water

CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Four high tensile steel spirals

COVER: DN 10-12 – R.O.C.
Synthetic rubber with extreme abrasion and ozone resistance
DN 19 and larger – ARMOURED
Synthetic rubber composite cover with textile reinforcement,
high abrasion and very high scratch resistance

APPLICABLE SPECS: Manuli® Design, ref. ISO 18752-C

TYPE APPROVALS: MSHA; CU-TR

KEY FEATURES

  • Extremely high abrasion resistance, long life before reinforcement scratching
  • Special composite cover layer with textile reinforcement for maximum resistance in harsh environments
  • Very low bend radius to suit restricted space installations
  • Good flexibility across the whole temperature range
  • Easy mounting in any installation
  • Highly robust and compact hose structure compared to rated pressure
  • High resistance to environmental agents
  • High impulse resistance according to ISO 18752 requirements
