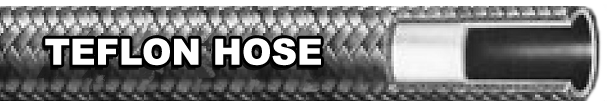

TEFLON HOSE
Click to Veiw PDF


MAIN APPLICATIONS
Pulp & paper, chemical transfer, high temperature hydraulics

CONTINUOUS SERVICE TEMPERATURE RANGE
-65°F / +450°F
-54°C / +230°C

COVER: 304 stainless steel

INNER CORE: PTFE

TYPE APPROVALS: J1402, DOT FMVSS 106AII (3/16" - 5/8")



PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT Fittings
(Crimp)

DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft
S-3TWH N/A -3 3/16" - - 0.13 0.23 206.9 3000 - - 51 2.00 74.4 0.05 TW SERIES
S-4TWH N/A -4 1/4" - - 0.19 0.30 206.9 3000 - - 51 2.00 89.3 0.06 TW SERIES
S-5TWH N/A -5 5/16" - - 0.25 0.37 206.9 3000 - - 58 2.30 104.2 0.07 TW SERIES
S-6TWH N/A -6 3/8" - - 0.32 0.40 172.4 2500 - - 99 3.90 133.9 0.09 TW SERIES
S-8TWH N/A -8 1/2" - - 0.41 0.52 137.9 2000 - - 119 4.70 171.1 0.12 TW SERIES
S-10TWH N/A -10 5/8" - - 0.50 0.59 120.7 1750 - - 135 5.30 223.2 0.15 TW SERIES
S-12TWH N/A -12 3/4" - - 0.62 0.80 103.4 1500 - - 165 6.50 334.8 0.23 TW SERIES
S-16TWH N/A -16 1" - - 0.87 1.05 69.0 1000 - - 198 7.80 706.9 0.48 TW SERIES
S-20TWH N/A -20 1-1/4" - - 1.13 1.38 69.0 1000 - - 279 11.00 870.6 0.59 TW SERIES
