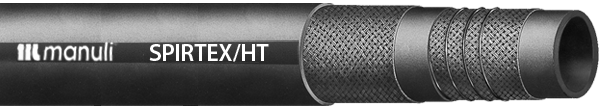

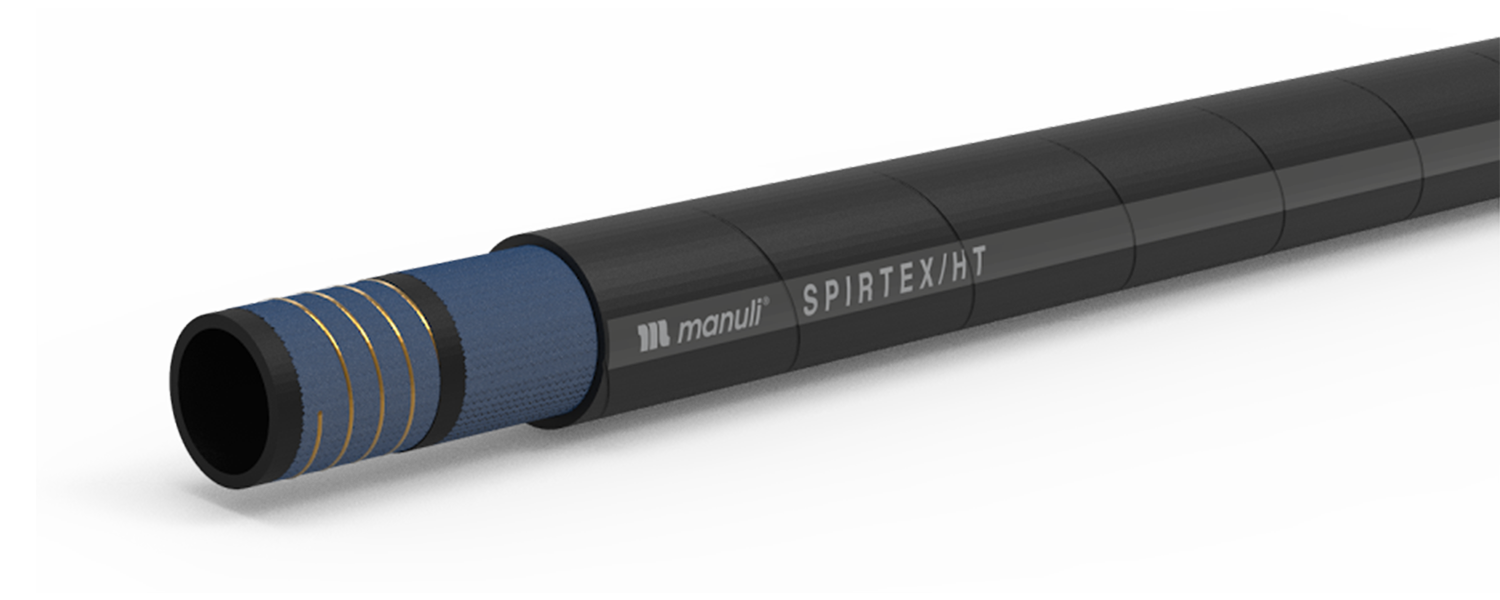

SPIRTEX / HT®
Click to View PDF


MAIN APPLICATIONS
Hydraulics: suction lines, return lines

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +275°F
-40°C / +135°C

RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol and polyglycol
based oils, synthetic ester based oils, oils in aqueous emulsion, water

TUBE: Special synthetic rubber

REINFORCEMENT: High tensile synthetic cord, helix body wire

COVER: Weather and ozone resistant synthetic rubber, flame retardant with high heat resistance

APPLICABLE SPECS: SAE J517 100 R4, Manuli Design; two-thirds the SAE J517 100R minimum bend radius

TYPE APPROVALS: CU-TR

KEY PERFORMANCE
Hardwall hose used for the suction and delivery of hydraulic oils • Improved minimum bend radius • Higher working pressure than SAE J517 100R4 spec. • Long lasting in severe applications • Resistance to Vacuum • Special rubber compounds for high aging resistance • Max. length: 60m





HF PART PART REF. HOSE SIZE
 R.O.D. O.D. MAX W.P. BURST
PRESSURE		 MIN. BEND
RADIUS		 WEIGHT FITTINGS


DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft Std1 Std2
SP/HT-12 H80003019* 19 –12 3/4" – – 29.6 1.16 25 360 100 1,450 80.0 3.14 564 0.38 MF + M00321-12 –
SP/HT-16 H80003025* 25 –16 1" – – 36.0 1.41 25 360 100 1,450 100.0 3.93 713 0.48 MF + M00930-16 –
SP/HT-20 H80003031* 31 –20 1-1/4" – – 43.0 1.69 17 250 70 1,015 130.0 5.11 892 0.6 MF + M00920-20 –
SP/HT-24 H80003038* 38 –24 1-1/2" – – 49.6 1.95 17 250 70 1,015 170.0 6.69 1119 0.75 MF + M00910-24 –
SP/HT-32 H80003051* 51 –32 2" – – 62.4 2.45 10 150 42 609 200.0 7.87 1432 0.96 MF + M00910-32 –
SP/HT-40 H80003063* 63 –40 2-1/2" – – 75.7 2.98 10 150 42 609 235.0 9.25 2201 1.48 MF + M03450-40 –
SP/HT-48 H80003076* 76 –48 3" – – 88.2 3.47 7 100 28 406 300.0 11.81 2648 1.78 MF + M03400-48 –
SP/HT-56 H80003089* 89 –56 3-1/2" – – 103.5 4.07 5 70 21 304 350.0 13.77 3627 2.44 MF + M03400-56 –
SP/HT-64 H80003102* 102 –64 4" – – 116.6 4.59 5 70 21 304 400.0 15.74 4222 2.84 MF + M03400-64 –
