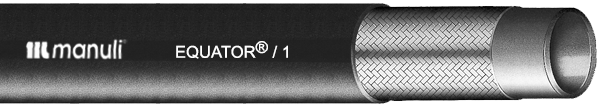

MANULI EQUATOR™/ 1
EXTREME TEMPERATURE
Click to Veiw PDF


MAIN APPLICATIONS
Low-medium pressure lines in extreme temperature conditions (foundries, com-pressors, hydraulics within engine compartments, etc.)

CONTINUOUS SERVICE TEMPERATURE RANGE
-67°F / +275°F
-55°C / +135°C

MAX OPERATING TEMPERATURE
(Intermittent service) 300°F 150°C

RECOMMENDED FLUIDS
Mineral oils, glycols and polyglycols, transmission fluids, air with oil vapours, mineral oils in aqueous emulsion (up to 212°F 100°C)

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: One high tensile steel braid

COVER: Blue synthetic rubber with high ozone, weather and heat resistance

APPLICABLE SPECS: Exceed EN 853 1SN - SAE 100 R1AT - ISO 1436-1 1SN/R1AT

TYPE APPROVALS: ABS, BV, BV MED (DN 6÷31), DNV, GL, GOST-R, LR, MSHA

ATTENTION!
Compressed air applications require cover pin-pricking and additional safety devices

KEY PERFORMANCE
Wide range temperature resistance • EN/DIN pressure rating • Outstanding ozone resistance • Superior weather and UV resistance



PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF3000
FITTING 		MF2000
FITTING

DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft

EQ1-04 6 -4 1/4" 11.0 0.43 13.4 0.53 225 3260 1000 14500 100 3.94 240 16 OPS MF+M00120-04
EQ1-05 8 -5 5/16" 12.6 0.50 15.0 0.59 215 3110 900 13050 114 4.49 280 19 - MF+M00120-05
EQ1-06 10 -6 3/8" 15.0 0.59 17.3 0.68 180 2610 800 11600 127 5.00 340 23 OPS MF+M00120-06
EQ1-08 12 -8 1/2" 18.1 0.71 20.5 0.81 160 2320 680 9860 178 7.01 435 29 OPS MF+M00120-08
EQ1-10 16 -10 5/8" 21.3 0.84 23.5 0.93 130 1880 600 8700 200 7.87 505 34 OPS MF+M00120-10
EQ1-12 19 -12 3/4" 25.2 0.99 27.7 1.09 105 1520 500 7250 240 9.45 645 43 OPS MF+M00120-12
EQ1-16 25 -16 1" 33.1 1.30 35.8 1.41 88 1270 360 5220 300 11.81 980 66 OPS MF+M00120-16
EQ1-20 31 -20 1-1/4" 40.6 1.60 43.5 1.71 65 940 345 5000 420 16.54 1305 87 OPS|OPNS MF+M00120-20
EQ1-24 38 -24 1-1/2" 46.9 1.85 50.0 1.97 50 720 290 4200 500 19.69 1550 104 OPS|OPNS MF+M00120-24
EQ1-32 51 -32 2" 60.4 2.38 63.1 2.48 40 580 250 3620 630 24.80 2250 151 OPS|OPNS MF+M00120-32
