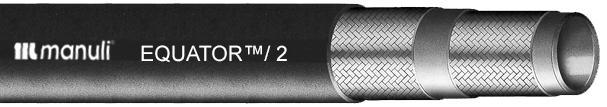

MANULI EQUATOR™/ 2
EXTREME TEMPERATURE
Click to Veiw PDF


MAIN APPLICATIONS
Medium-high pressure lines in extreme temperature conditions
(foundries, compressors, hydraulics within engine compartments, etc.)

CONTINUOUS SERVICE TEMPERATURE RANGE
-67°F / +275°F
-55°C / +135°C

RECOMMENDED FLUIDS
Mineral oils, glycols and polyglycols, transmission fluids, air with oil
vapours, mineral oils in aqueous emulsion (up to 212°F 100°C)

ATTENTION!
Compressed air applications require cover pin-pricking and additional safety devices

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Two high tensile steel braids

COVER: Blue synthetic rubber with high ozone, weather and heat resistance

APPLICABLE SPECS: Exceed EN 853 2SN SAE 100 R2AT - ISO 1436-1 2SN/R2AT

TYPE APPROVALS: ABS, BV, BV (MED), DNV, GL, GOST-R, LR, MSHA

KEY PERFORMANCE
Wide range temperature resistance • EN/DIN pressure rating • Outstanding ozone resistance • Superior weather and UV resistance



PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF2000
FITTING

DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft
EQ2-04 6 -4 1/4" 12.7 0.50 14.9 0.59 400 5800 1725 25010 100 3.94 390 0.26 MF+M00910-04
EQ2-05 8 -5 5/16" 14.3 0.56 16.5 0.65 350 5070 1480 21460 114 4.49 435 0.29 MF+M00910-05
EQ2-06 10 -6 3/8" 16.7 0.66 19.0 0.75 330 4780 1400 20300 127 5.00 530 0.36 MF+M00910-06
EQ2-08 12 -8 1/2" 19.8 0.78 22.0 0.87 275 3980 1200 17400 178 7.01 640 0.43 MF+M00910-08
EQ2-10 16 -10 5/8" 23.0 0.91 25.2 0.99 250 3620 1020 14790 200 7.87 760 0.51 MF+M00910-10
EQ2-12 19 -12 3/4" 27.0 1.06 29.0 1.14 215 3110 900 13050 240 9.45 940 0.63 MF+M00920-12
EQ2-16 25 -16 1" 34.8 1.37 37.0 1.46 175 2530 700 10150 300 11.81 1350 0.91 MF+M00930-16
EQ2-20 31 -20 1-1/4" 44.3 1.74 47.0 1.85 150 2170 600 8700 420 16.54 2010 1.35 MF+M00920-20
EQ2-24 38 -24 1-1/2" 50.7 2.00 53.4 2.10 100 1450 410 5940 500 19.69 2250 1.51 MF+M00910-24
EQ2-32 51 -32 2" 63.5 2.50 66.2 2.61 90 1300 370 5360 630 24.80 3080 2.07 MF+M00910-32
