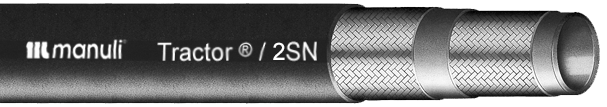

MANULI TRACTOR® / 2SN
EN 853 2SN
Click to Veiw PDF


MAIN APPLICATIONS
Medium-high pressure lines

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C

RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Two high tensile steel braid

COVER: Environment resistant synthetic rubber

APPLICABLE SPECS: EN 853 2SN - SAE 100 R2AT - ISO 1436 2SN/R2AT

TYPE APPROVALS: ABS, BV (DN 5÷51), DNV, GL, GOST-R, KSR, LR, MSHA

KEY PERFORMANCE
EN/DIN rated working pressure - Smooth cover FRAS approved (DN 5÷12)

PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF3000
FITTING 		MF2000
FITTING
DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft
T2SN-04 6 -4 1/4" 12.7 0.50 14.7 0.58 400 5800 1600 23200 100 3.94 370 0.25 OPF MF+M03400-04
T2SN-05 8 -5 5/16" 14.3 0.56 16.3 0.64 350 5070 1400 20300 114 4.49 410 0.28 OPF MF+M03400-05
T2SN-06 10 -6 3/8" 16.7 0.66 18.7 0.74 330 4780 1320 19140 127 5.00 530 0.36 OPF MF+M03400-06
T2SN-08 12 -8 1/2" 19.8 0.78 21.8 0.86 275 3980 1100 15950 178 7.01 620 0.42 OPF MF+M03400-08
