MAIN APPLICATIONS
High pressure power lines with short assemblies in severe installations
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C
RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester-based oils
(up to 212°F I 100°C), glycols and polyglycols , mineral oils in aqueous emulsion, water

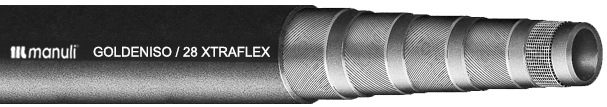

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Four high tensile steel spirals
COVER: Synthetic rubber with high abrasion , ozone , weather and heat resistance
APPLICABLE SPECS: 18752-C/D; JIS K6349-3
TYPE APPROVALS: MSHA
KEY PERFORMANCE
Excellent flexibility (low bending force), also in low temperature applications • Approved 1 Million impulse cycles (MF2000 fittings) • Reduced bend radius • Easy mounting in severe installations • Isobaric pressure rating • G'lio biological and mineral oils compatibility • No-skive fitting solution
|
|
|
|
|
|
|
|
|
|
|
PART REF.
|
HOSE SIZE
|
R.O.D.
|
O.D.
|
MAX W.P.
|
BURST
PRESSURE
|
MIN. BEND
RADIUS
|
WEIGHT
|
MF3000
FITTING
|
MF2000
FITTING
|
|
DN
|
dash
|
inch
|
mm
|
inch
|
mm
|
inch
|
bar
|
psi
|
bar
|
psi
|
mm
|
inch
|
g/m
|
lb/ft
|
|
|
|
Gl28XF-06
|
10
|
-6
|
3/8"
|
16.7
|
0.66
|
18.9
|
0.74
|
280
|
4060
|
1120
|
16240
|
65
|
2.56
|
520
|
0.35
|
OPK-06
|
MF+M00910-06
|
|
Gl28XF-08
|
12
|
-8
|
1/2"
|
19.6
|
0.77
|
21.8
|
0.86
|
280
|
4060
|
1120
|
16240
|
90
|
3.54
|
650
|
0.44
|
OPK-08
|
MF+M00910-08
|
GI28XF-10
|
16
|
-10
|
5/8"
|
23.5
|
0.93
|
25.7
|
1.01
|
280
|
4060
|
1120
|
16240
|
100
|
3.94
|
934
|
0.63
|
OPK-10
|
MF+M00910-10
|
|
Gl28XF-12
|
19
|
-12
|
3/4"
|
26.9
|
1.06
|
29.3
|
1.15
|
280
|
4060
|
1120
|
16240
|
120
|
4.72
|
1040
|
0.70
|
OPK-12
|
MF+M00910-12
|
|
Gl28XF-16
|
25
|
-16
|
1"
|
34.1
|
1.34
|
36.5
|
1.44
|
280
|
4060
|
1120
|
16240
|
150
|
5.91
|
1530
|
1.03
|
OPK-16
|
MF+M00910-16
|
|
Gl28XF-20
|
31
|
-20
|
1-1/4"
|
41.7
|
1.64
|
44.5
|
1.75
|
280
|
4060
|
1120
|
16240
|
210
|
8.27
|
2160
|
1.45
|
OPK-20
|
MF+M00910-20
|
GI28XF-24
|
38
|
-24
|
1-1/2"
|
48.9
|
1.93
|
52.1
|
2.05
|
280
|
4060
|
1120
|
16240
|
280
|
11.02
|
2994
|
2.01
|
SP+M05400-24
|
IP+M01500-24
|
GI28XF-32
|
51
|
-32
|
2"
|
63.9
|
2.52
|
67.5
|
2.66
|
280
|
4060
|
1120
|
16240
|
350
|
13.78
|
4633
|
3.11
|
SP+M05400-32
|
IP+M01500-32
|
