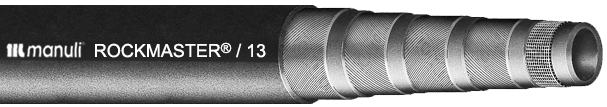

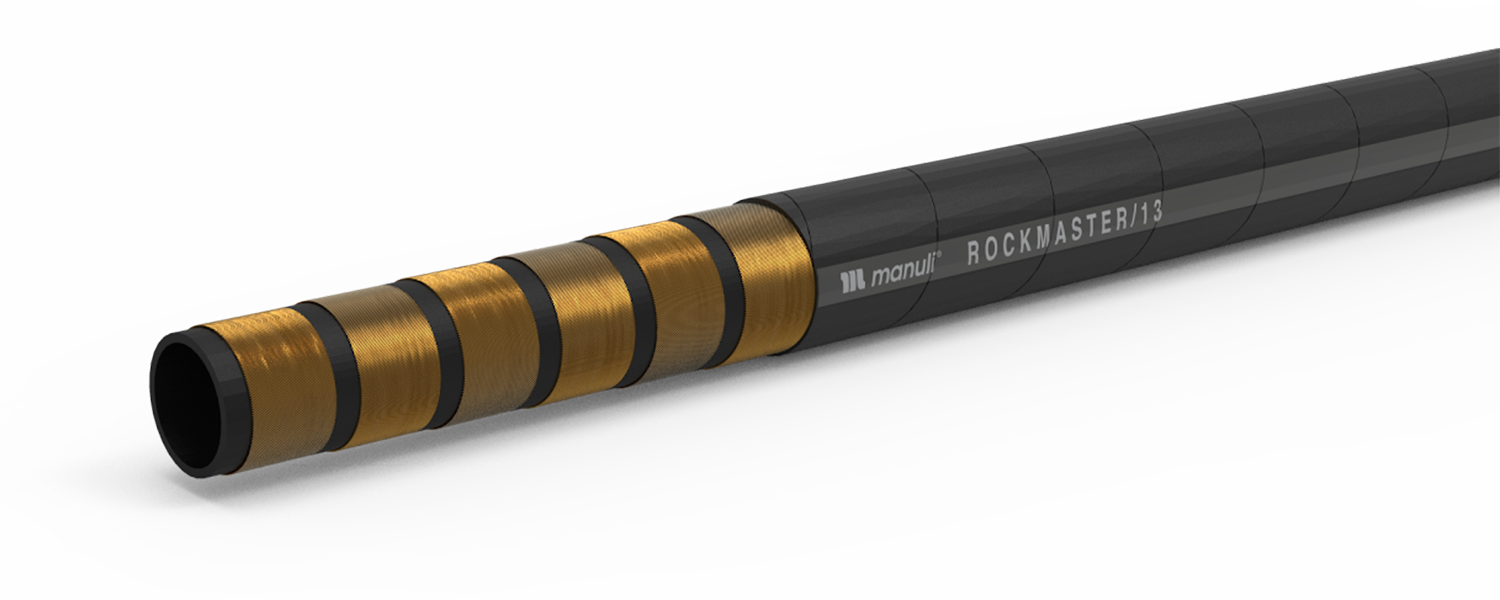

MANULI ROCKMASTER® / 13
ABRASION, WEATHER & HEAT RESISTANCE
Click to Veiw PDF


MAIN APPLICATIONS
Heavy duty power lines, hydrostatic transmissions, in heavy duty environmental conditions, specific installa-tions with severe abrasion conditions, marine applications, underground and open pit mining

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C

RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester based oils (up to 212°F 100°C), glycols and polyglycols, mineral oils in aqueous emulsion, water

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Four high tensile steel spirals (DN 6÷31). Six high tensile steel spirals (DN 38÷51)

COVER: Synthetic rubber with high ozone, weather and heat resistance

APPLICABLE SPECS: Exceed EN 856 R13 -
SAE 100 R13 - ISO 3862-1 R13

TYPE APPROVALS: ABS (DN 19÷51), BV (DN 19÷51), BV MED (DN 19÷51), FRAS, GOST-R, LOBA, RINA (DN 38÷51), (DN 19÷51), MSHA

KEY PERFORMANCE
Approved at 1.000.000 flexing impulse cycles (MF2000® fittings) - Superior abrasion resistance - High ozone and weather resistance - Flame resistance to a wide range of spec. - Antistatic and antitoxic cover - biological and mineral oils compatibility

PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF3000
FITTING 		MF2000
FITTING
DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft
R13-12 19 -12 3/4" - - 31.8 1.25 350 5070 1950 28270 240 9.45 1620 109 OPS IL+M01300-12
R13-16 25 -16 1" - - 39.2 1.54 350 5070 1650 23920 300 11.81 2195 147 OPS IL+M01300-16
R13-20 31 -20 1-1/4" - - 48.8 1.92 350 5070 1500 21750 420 16.50 3285 221 OPS IL+M01300-20
R13-24 38 -24 1-1/2" - - 57.5 2.26 350 5070 1600 23200 500 19.69 4720 317 OPS IL+M01300-24
R13-32 51 -32 2" - - 72.0 2.83 350 5070 1500 21750 630 24.80 6825 457 OPS IL+M01300-32
