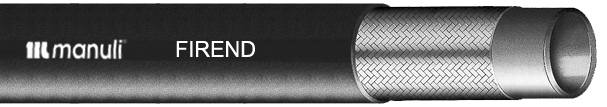

MANULI FIREND
FIRE SUPPRESSION SYSTEMS
Click to Veiw PDF


MAIN APPLICATIONS
Use in fire suppression systems of off-road vehicles, mining equipment, stationary engines. The hose present red cover for easy identification in the fire suppression system.

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°C / +100°C
-40°F / +212°F

RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester based oils, glycols and polyglycols, mineral oils in aqueous emulsion, water, water based fire extinguishing agents.

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: One high tensile steel wire braid

COVER: Red synthetic rubber with high ozone, abrasion and weather resistance.

APPLICABLE SPECS: ISO 1436-1SN, SAE J517 type 100R1S and R1AT, EN 853 1SN.

TYPE APPROVALS: MSHA

KEY PERFORMANCE
SAE 100R1S and ISO 1SN rated working pressure • Flame retardant red cover • Excellent performance for standard hydraulic applications • Embossed indelible branding • No skive MF2000 (two-pieces) and MF3000 (one-piece) fittings



PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF3000
FITTING 		MF2000
FITTING

DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft
FM-04 6 -4 1/4" - - 13.0 0.51 225 3260 900 13050 100 3.94 220 15 OPB MF+M03400-04
FM-06 10 -6 3/8" - - 17.0 0.67 180 2610 720 10440 127 5.00 325 22 OPB MF+M03400-06
FM-08 12 -8 1/2" - - 20.1 0.79 160 2320 640 9280 178 7.01 410 28 OPB MF+M03400-08
FM-12 19 -12 3/4" - - 27.9 1.09 105 1520 420 6090 240 9.45 655 44 OPB MF+M03400-12
