MAIN APPLICATIONS
Heavy duty power lines with short assemblies in severe installations
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C
RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester-based oils
(up to 212°F I 100°C), glycols and polyglycols , mineral oils in aqueous emulsion, water

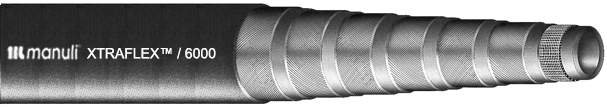

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Four high tensile steel spirals (DN 19+25)
COVER: Synthetic rubber with high ozone, weather and heat resistance
APPLICABLE SPECS: MANULI® Design
TYPE APPROVALS: MSHA
KEY PERFORMANCE
Excellent flexibility • Low bending force • Reduced bend radius • Easy mounting in severe installations • Isobaric pressure rating • Biological and mineral oils compatibility
