MAIN APPLICATIONS
Hydraulics: low pressure lines, return lines, drain lines with high temperature fluids
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +275°F
-40°C / +135°C
RECOMMENDED FLUIDS
Mineral oils, synthetic base oils (HS), vegetable and rape seed oils,
glycol and polyglycol based oils, oils in aqueous emulsion, water

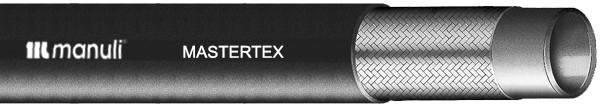

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: One high resistance textile braid
COVER: Weather and high heat resistant synthetic rubber
APPLICABLE SPECS: Exceeds SAE 100 R6; ISO 4079 R6/1TE
KEY PERFORMANCE
Long term aging resistance • Suitability for high temperature applications •
High flexibility • Wide range of fluid compatibility •
MF2000 Multifit type compatibility
|
|
|
|
|
|
|
|
|
|
|
HF PART
|
PART REF.
|
HOSE SIZE
|
R.O.D.
|
O.D.
|
MAX W.P.
|
BURST
PRESSURE
|
MIN. BEND
RADIUS
|
WEIGHT
|
FITTINGS
|
|
|
DN
|
dash
|
inch
|
mm
|
inch
|
mm
|
inch
|
bar
|
psi
|
bar
|
psi
|
mm
|
inch
|
g/m
|
lb/ft
|
Std1
|
Std2
|
|
MAS-04
|
H09069006*
|
6
|
-4
|
1/4"
|
–
|
–
|
12.6
|
0.50
|
30
|
430
|
120
|
1,740
|
45
|
1.77
|
115
|
0.08
|
MF+M00830-04
|
–
|
|
MAS-06
|
H09069010*
|
10
|
-6
|
3/8"
|
–
|
–
|
15.8
|
0.62
|
30
|
430
|
120
|
1,740
|
75
|
2.95
|
160
|
0.11
|
MF+M00820-06
|
–
|
|
MAS-08
|
H09069012*
|
12
|
-8
|
1/2"
|
–
|
–
|
19.4
|
0.76
|
30
|
430
|
120
|
1,740
|
90
|
3.54
|
210
|
0.14
|
MF+M00820-08
|
–
|
|
MAS-10
|
H09069016*
|
16
|
-10
|
5/8"
|
–
|
–
|
23.0
|
0.91
|
30
|
430
|
120
|
1,740
|
115
|
4.53
|
285
|
0.19
|
MF+M00820-10
|
–
|
