MAIN APPLICATIONS
Low-medium pressure lines with installation constraints in severe environmental conditions, specific installations with tough abrasion conditions, marine applications, underground and open pit mining
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C
RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water

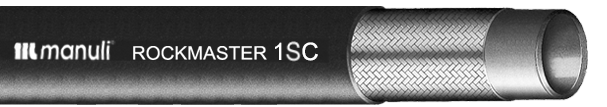

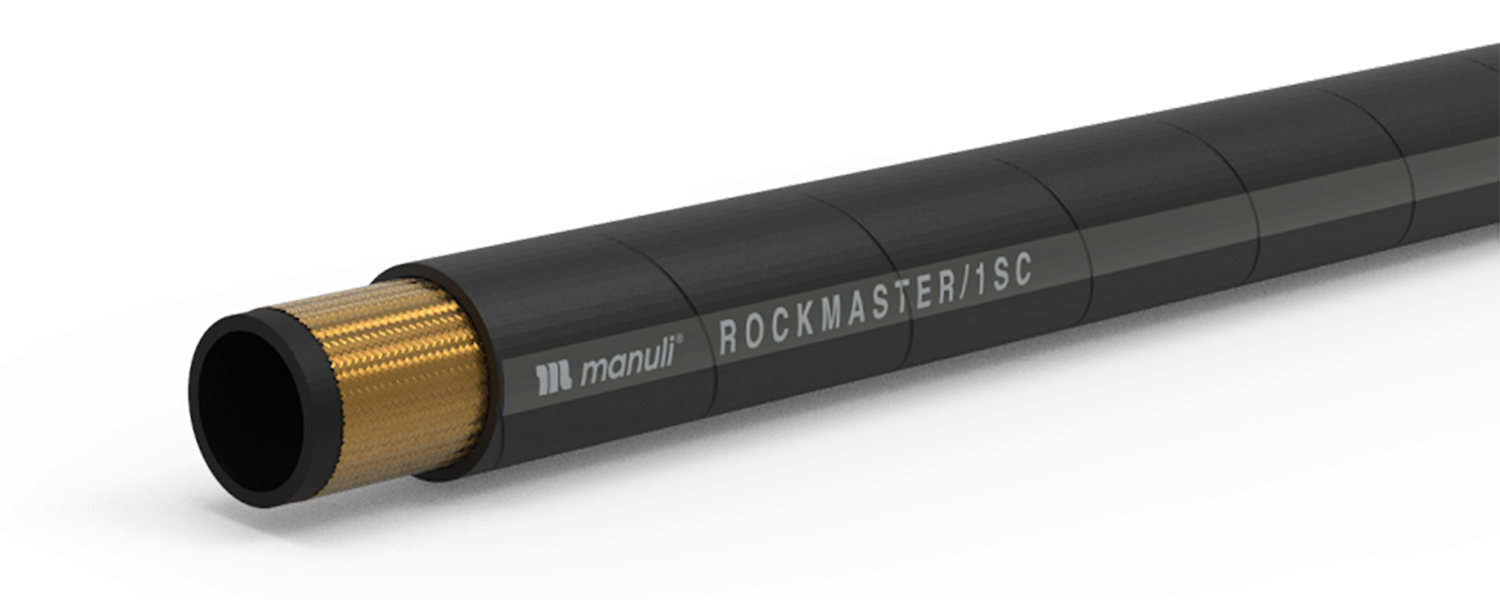

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: One high tensile steel braids
COVER: Synthetic rubber with high ozone, weather
and heat resistance
APPLICABLE SPECS: Exceed EN 857 1SC; ISO 11237 1SC
TYPE APPROVALS: CU-TR; LR; MSHA; FRAS
KEY PERFORMANCE
Compact and flexible one wire braid hose line - High temperature resistance for the most severe service and OEM applications - Working pressure exceeds 1SC standards - Superior protection with ROCKMASTER® cover oompound - High ozone and weather resistance - Flame resistance to a wide range of specs - Antistatic and antitoxic cover - Vacuum resistance with SAE 100 R4 performance approved on sizes up to DN 31
|
|
|
|
|
|
|
|
|
|
|
PART REF.
|
HOSE SIZE
|
R.O.D.
|
O.D.
|
MAX W.P.
|
BURST
PRESSURE
|
MIN. BEND
RADIUS
|
WEIGHT
|
|
|
DN
|
dash
|
inch
|
mm
|
inch
|
mm
|
inch
|
bar
|
psi
|
bar
|
psi
|
mm
|
inch
|
g/m
|
lb/ft
|
|
R1SC-04
|
6
|
- 4
|
1/4"
|
10.2
|
0.40
|
12.0
|
0.47
|
260
|
3770
|
1050
|
15220
|
50
|
1.97
|
180
|
0.12
|
MF+M03300-04
|
R1SC-05
|
8
|
- 5
|
5/16"
|
11.5
|
0.45
|
13.6
|
0.54
|
250
|
3620
|
1000
|
14500
|
55
|
2.17
|
210
|
0.14
|
MF+M00120-05
|
R1SC-06
|
10
|
- 6
|
3/8"
|
13.6
|
0.54
|
15.5
|
0.61
|
225
|
3260
|
900
|
13050
|
60
|
2.36
|
255
|
0.17
|
MF+M00120-06
|
R1SC-08
|
12
|
- 8
|
1/2"
|
17.3
|
0.68
|
19.1
|
0.75
|
190
|
2750
|
760
|
11020
|
70
|
2.76
|
355
|
0.24
|
MF+M03300-08
|
R1SC-10
|
16
|
- 10
|
5/8"
|
20.6
|
0.81
|
22.4
|
0.88
|
150
|
2170
|
600
|
8700
|
90
|
3.54
|
430
|
0.29
|
MF+M00120-10
|
R1SC-12
|
19
|
- 12
|
3/4"
|
23.9
|
0.94
|
25.9
|
1.02
|
150
|
2170
|
600
|
8700
|
100
|
3.94
|
520
|
0.35
|
MF+M00120-12
|
R1SC-16
|
25
|
- 16
|
1"
|
31.3
|
1.23
|
33.1
|
1.30
|
110
|
1590
|
440
|
6380
|
160
|
6.30
|
730
|
0.49
|
MF+M00120-16
|
R1SC-20
|
31
|
- 20
|
1.1/4"
|
38.4
|
1.51
|
40.9
|
1.61
|
75
|
1080
|
300
|
4350
|
210
|
8.27
|
1040
|
0.70
|
MF+M00820-20
|
R1SC-24
|
38
|
- 24
|
1.1/2"
|
45.0
|
1.77
|
47.5
|
1.87
|
50
|
720
|
200
|
2900
|
300
|
11.81
|
1170
|
0.79
|
MF+M00820-24
|
