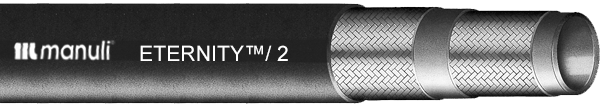

MANULI ETERNITY™/ 2
HIGH SERVICE LIFE & RELIABILITY
Click to Veiw PDF


MAIN APPLICATIONS
High pressure lines with installation constraints in severe OEM applications

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / + 250°F
-40°C / + 121°C

RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester based oils (up to +212°F / +100°C), glycols and polyglycols, mineral oils in aqueous emulsion,water

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Two high tensile steel braids

COVER: Synthetic rubber with high ozone, abrasion, and weather resistance

APPLICABLE SPECS: Exceed EN 857 2SC, SAE 100 R16S and ISO 11237 2SC

TYPE APPROVALS: DNV, DNV (MED), GOST-R, MSHA, LOBA

KEY PERFORMANCE
The Hi-Performance solution for toughest OEM • Performance far exceeds EN 857-2SC • Improved impulse and service life duration • High temperature and environmental resistance • Enhanced flex impluse resistance with M00120 skive ferrule




PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT
FITTING

DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft
E2-04 6 -4 1/4" 11.3 0.44 13.1 0.52
450
6520
1800
26100
45
1.77
275
0.18
MF+M00120-04
E2-05 8 -5 5/16" 12.9 0.51 14.7 0.58
400
5800
1600
23200
55
2.17
325
0.22
MF+M00120-05
E2-06 10 -6 3/8" 15.0 0.59 16.8 0.66
365
5290
1460
21170
65
2.56
390
0.26
MF+M00120-06
E2-08 12 -8 1/2" 18.6 0.73 20.4 0.80
350
5070
1400
20300
80
3.15
560
0.38
MF+M00120-08
E2-10 16 -10 5/8" 22.7 0.89 24.7 0.97
300
4350
1200
17400
90
3.54
730
0.49
MF+M00120-10
E2-12 19 -12 3/4" 27.1 1.07 29.3 1.15
300
4350
1200
17400
120
4.72
1070
0.72
MF+M00120-12
E2-16 25 -16 1" 33.7 1.33 35.9 1.41
225
3260
900
13050
160
6.30
1340
0.90
MF+M00130-16
