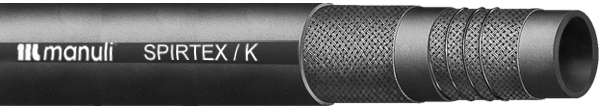

MANULI SPIRTEX / K® SAE 100 R4
Click to Veiw PDF


MAIN APPLICATIONS
Suction lines, return lines

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C

RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol and polyglycol
based oils, synthetic ester based oils, oils in aqueous emulsion, water

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Two textile reinforcements with steel helical body wire

COVER: Environment resistant synthetic rubber

APPLICABLE SPECS: SAE 100 R4

TYPE APPROVALS: GOST-R

KEY PERFORMANCE
Resistance to vacum - New compact SAE 100 R4 architecture

PART REF. HOSE SIZE
O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF3000
FITTING 		MF2000
FITTING
DN dash inch mm inch bar psi bar psi mm inch g/m lb/ft
SPK-10 16 -10 5/8" 26.0 1.02 21 300 64 930 96 3.78 590 40 - MF+M00310-10
SPK-12 19 -12 3/4" 29.0 1.14 21 300 64 930 96 3.78 550 37 OPS MF+M00310-12
SPK-16 25 -16 1" 35.0 1.38 17.0 250 70 1010 150 5.91 680 46 OPS MF+M00310-16
SPK-20 31 -20 1-1/4" 42.0 1.65 14 200 56 810 200 7.87 840 56 OPS MF+M00310-20
SPK-24 38 -24 1-1/2" 48.5 1.91 10 140 42 610 254 10.00 1024 70 OPS MF+M00310-24
SPK-32 51 -32 2" 61.5 2.42 7 100 28 410 300 11.81 1420 95 OPS MF+M00310-32
SPK-40 63 -40 2-1/2" 76.0 2.99 4 62 17 250 355 13.98 2150 144 - MF+M00310-40
SPK-48 76 -48 3" 88.0 3.46 4 56 16 230 457 17.99 2850 191 - MF+M00310-48
SPK-56 89 -56 3-1/2" 103.0 4.06 3 45 12 180 530 20.87 3450 231 - *
SPK-64 102 -64 4" 115.0 4.53 2 35 10 140 610 24.02 3900 261 - *
