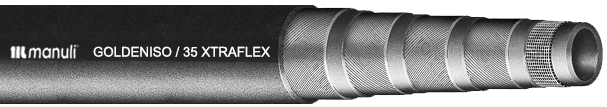

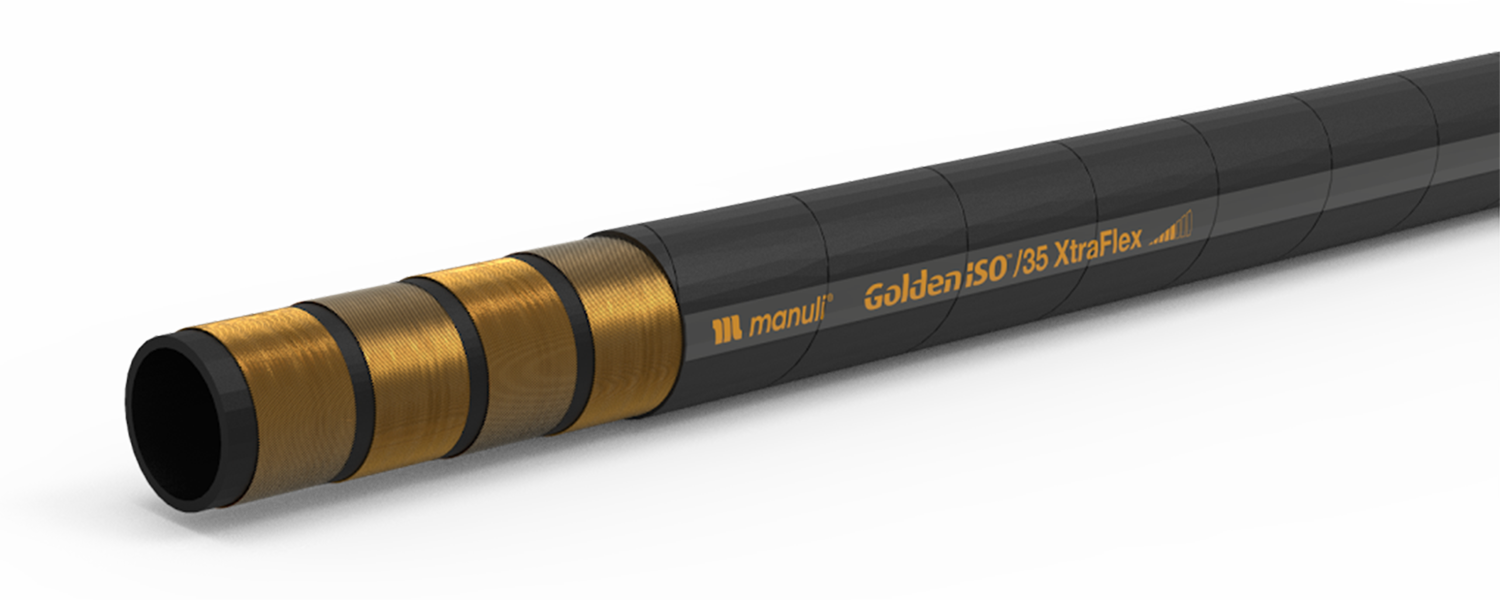

MANULI GOLDENISO® / 35 XTRAFLEX
ISO 18752-C/D
Click to Veiw PDF


MAIN APPLICATIONS
Heavy duty power lines with short assemblies in severe installations

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C

RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester-based oils (up to 212°F I 100°C), glycols and polyglycols, mineral oils in aqueous emulsion, water

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Four high tensile steel spirals (DN 6+31) Six high tensile steel spirals (DN 38+51)

COVER: Synthetic rubber with high abrasion , ozone , weather and heat resistance

APPLICABLE SPECS: ISO 18752-C/D; JIS K6349-3

TYPE APPROVALS: MSHA

KEY PERFORMANCE
Excellent flexibility (low bending force), also in low temperature applications • Approved 1 Million impulse cycles (MF2000 fittings) • Reduced bend radius • Easy mounting in severe installations • Isobaric pressure rating • G'lio biological and mineral oils compatibility • No-skive fitting solution available



PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF3000
FITTING 		MF2000
FITTING

DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft
GI35XF-06 10 -6 3/8" 16.7 0.66 18.9 0.74 350 5070 1400 20300 80 3.15 530 0.36 OPK-06
MF+M00910-06
Gl35XF-08 12 -8 1/2" 19.6 0.77 21.8 0.86 350 5070 1400 20300 90 3.54 660 0.44 OPK-08 MF+M00910-08
GI35XF-10 16 -10 5/8" 23.5 0.93 25.7 1.01 350 5070 1400 20300 100 3.94 934 0.63 OPK-10 MF+M00910-10
Gl35XF-12 19 -12 3/4" 27.5 1.08 30.1 1.19 350 5070 1400 20300 120 4.72 1220 0.82 OPK-12 MF+M00910-12
Gl35XF-16 25 -16 1" 34.6 1.36 37.2 1.46 350 5070 1400 20300 150 5.91 1800 1.21 OPK-16 MF+M00910-16
Gl35XF-20 31 -20 1-1/4" 42.1 1.66 44.9 1.77 350 5070 1400 20300 230 9.06 2340 1.57 SP+M01500-20 MF+M00910-20
GI35XF-24 38 -24 1-1/2" 52.9 2.08 56.1 2.21 350 5070 1400 20300 300 11.81 4165 2.80 SP+M05500-24 IP+M01600-24
GI35XF-32 51 -32 2" 66.8 2.63 70.4 2.77 350 5070 1400 20300 360 14.17 6161 4.14 SP+M05500-32 IP+M01800-32
