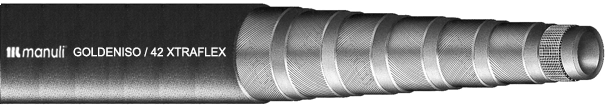

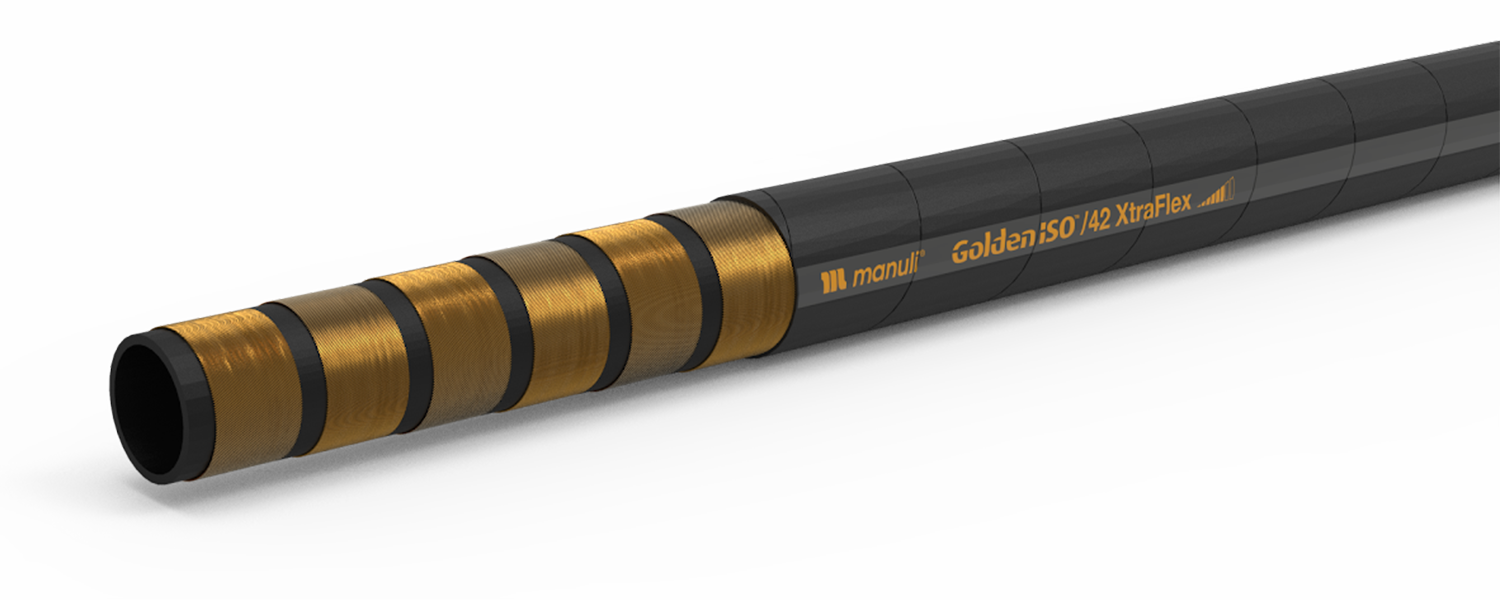

MANULI GOLDENISO® / 42 XTRAFLEX
18752-C/D
Click to Veiw PDF


MAIN APPLICATIONS
Heavy duty power lines with short assemblies in severe installations

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C

RECOMMENDED FLUIDS
Mineral oils , vegetable oils and synthetic ester-based oils (up to 212°F I 100°C), glycols and polyglycols , mineral oils in aqueous emulsion , water

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Four high tensile steel spirals (DN 6+25). Six high tensile steel spirals (DN 31+51)

COVER: Synthetic rubber with high abrasion , ozone , weather and heat resistance

APPLICABLE SPECS: ISO 18752-C/D

TYPE APPROVALS: MSHA

KEY PERFORMANCE
Excellent flexibility (low bending force), also in low temperature applications • Approved 1 Million impulse cycles (MF2000 skive fittings) • Reduced bend radius • Easy mounting in severe installations • Isobaric pressure rating • mio biological and mineral oils compatibility • No-skive fitting solution



PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF2000
FITTING 		2 PIECE
NO SKIVE

DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft
GI42XF-06
10
-6
3/8"
17.6
0.69
20.0
0.79
420
6090
1680
24360
100
3.94
550
0.37
MF+M00910-06

GI42XF-08
12
-8
1/2"
20.3
0.80
22.7
0.89
420
6090
1680
24360
120
4.72
807
0.54
MF+M00910-08

GI42XF-10
16
-10
5/8"
23.9
0.94
26.4
1.04
420
6090
1680
24360
140
5.51
989
0.66
IP+M01500-10
SP+M05400-10
Gl42XF-12 19 -12 3/4" 27.7 1.09 30.2 1.19 420 6090 1680 24360 150 5.91 1285 0.86 IP+M01500-12 SP+M05400-12
Gl42XF-16 25 -16 1" 34.8 1.37 37.3 1.47 420 6090 1680 24360 210 8.27 1915 1.29 IP+M01500-16 SP+M05400-16
Gl42XF-20 31 -20 1-1/4" 46.3 1.82 49.5 1.95 420 6090 1680 24360 260 10.24 3663 2.46 IP+M01500-20 SP+M05400-20
GI42XF-24
38
-24
1-1/2"
53.2
2.09
56.4
2.22
420
6090
1680
24360
310
12.20
4450
2.99
IP+M01600-24
SPGX+M05500-24GX
