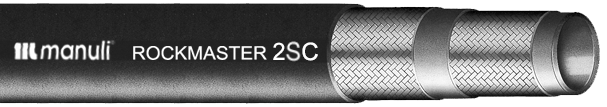

MANULI ROCKMASTER® / 2SC
ABRASION,WEATHER & HEAT RESISTANCE
Click to Veiw PDF


MAIN APPLICATIONS
Medium-high pressure lines with installation constraints in
heavy duty environmental conditions, specific installations with
severe abrasion conditions, marine applications, underground
and open pit mining, return and suction lines

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C

RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Two high tensile steel braids

COVER: Synthetic rubber with high ozone, weather
and heat resistance

APPLICABLE SPECS: Exceed EN 857 2SC - ISO 11237-1 2SC, SAE 100 R 16S; in addition: DN 25 SAE 100 R17, ISO 11237-1 R17

TYPE APPROVALS: GOST-R, LOBA (DN 5÷25), LR, MSHA, RINA (DN 6÷31), (DN 8÷25)

KEY PERFORMANCE
Superior abrasion resistance - High ozone and weather resistance - Flame resistance to a wide range of spec. - Antistatic and antitoxic cover - Working pressure improvement - Range extension to DN 76 - Vacuum resistance with SAE 100 R4 performance approved on sizes up to DN 76




PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT
MF2000
FITTING

DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft
Skive
Non-Skive
R2SC-03 5 -3 3/16" 9.7 0.38 11.5 0.45 420 6090 2000 29000 40 1.57 220 0.15
MF+M00120-03 MF+M03400-03
R2SC-04 6 -4 1/4" 11.3 0.44 13.1 0.52 400 5800 1850 26830 45 1.77 275 0.18
MF+M00120-04 MF+M03400-04
R2SC-05 8 -5 5/16" 12.9 0.51 14.7 0.58 350 5070 1700 24650 55 2.17 325 0.22
MF+M00120-05 MF+M03400-05
R2SC-06 10 -6 3/8" 15.0 0.59 16.8 0.66 330 4780 1500 21750 65 2.56 390 0.26
MF+M00120-06 MF+M03400-06
R2SC-08 12 -8 1/2" 18.5 0.73 20.3 0.80 275 3980 1220 17690 80 3.15 500 0.34
MF+M00120-08 MF+M03400-08
R2SC-10 16 -10 5/8" 21.8 0.86 23.6 0.93 250 3620 1050 15220 90 3.54 620 0.42
MF+M00120-10 MF+M03400-10
R2SC-12 19 -12 3/4" 25.6 1.01 27.6 1.09 245 3550 980 14210 120 4.72 790 0.53
MF+M00120-12 MF+M03400-12
R2SC-16 25 -16 1" 33.0 1.30 35.2 1.39 210 3040 840 12180 150 5.91 1180 0.79
MF+M00130-16 MF+M03400-16
R2SC-20 31 -20 1-1/4" 41.1 1.62 43.6 1.72 140 2030 560 8120 250 9.84 1550 1.04
MF+M00110-20 MF+M03400-20
R2SC-24 38 -24 1-1/2" 47.7 1.88 50.7 2.00 100 1450 400 5800 300 11.81 1880 1.26
MF+M00110-24 MF+M03400-24
R2SC-32 51 -32 2" 60.4 2.38 63.4 2.50 90 1300 360 5220 400 15.75 2430 1.63
MF+M00110-32 MF+M03400-32
