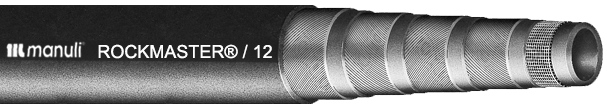

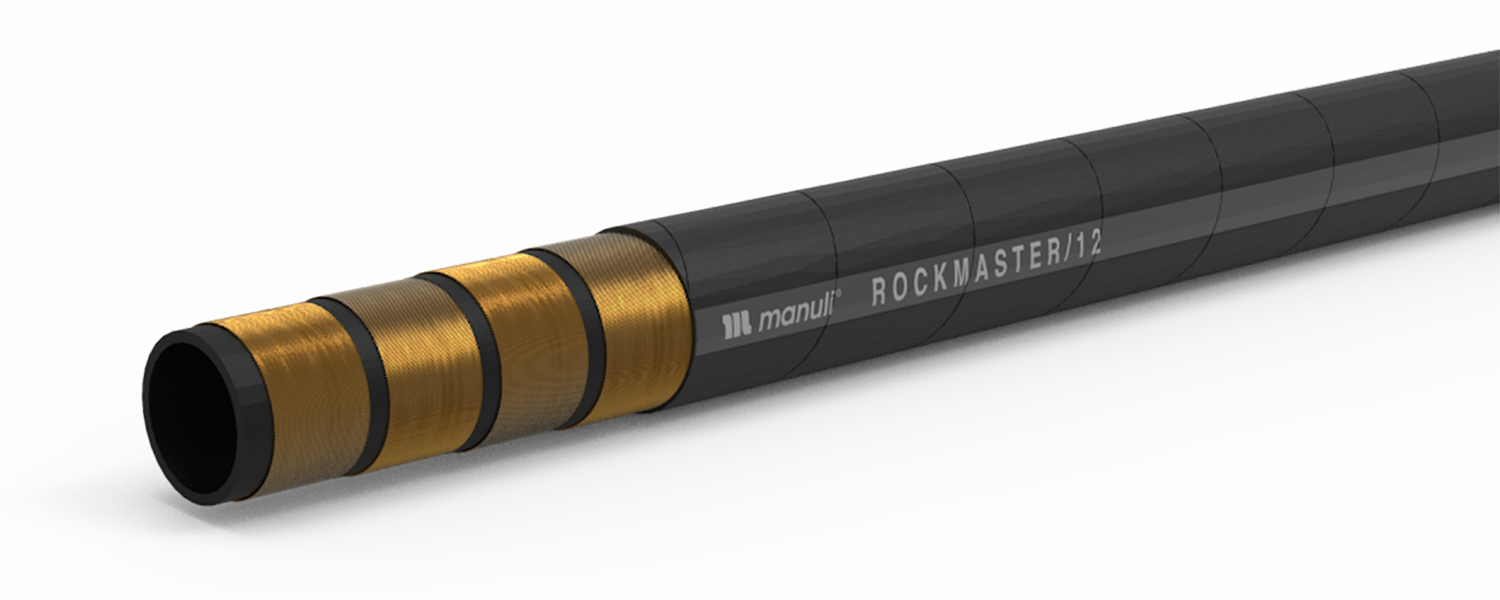

MANULI ROCKMASTER® / 12
ABRASION, WEATHER & HEAT RESISTANCE
Click to Veiw PDF


MAIN APPLICATIONS
High pressure power lines in heavy duty environmental conditions, specific installations with severe abrasion conditions, marine applications, underground and open pit mining

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C

RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester based oils (up to 212°F 100°C), glycols and polyglycols, mineral oils in aqueous emulsion, water

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Four high tensile steel spirals

COVER: Synthetic rubber with high ozone, weather and heat resistance

APPLICABLE SPECS: Exceed EN 856 R12 -
SAE 100 R12 - ISO 3862-1 R12

TYPE APPROVALS: ABS, BV, BV (MED), FRAS, GOST-R, LR, MSHA

KEY PERFORMANCE
Approved at1.000.000 impulse cycles (MF2000® fittings) - Superior abrasion resistance - High ozone and weather resistance - Flame resistance to a wide range of spec. - Antistatic and antitoxic cover - biological and mineral oils compatibility

PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF3000
FITTING 		MF2000
FITTING
DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft
R12-06 10 -6 3/8" - - 20.0 0.79 280 4060 1600 23200 100 3.94 620 42 OPS|OPNS MF+M00910-06
R12-08 12 -8 1/2" - - 23.5 0.93 280 4060 1350 19570 125 4.92 760 51 OPS|OPNS MF+M00910-08
R12-10 16 -10 5/8" - - 27.1 1.07 280 4060 1300 18850 140 5.51 990 66 OPS|OPNS MF+M00910-10
R12-12 19 -12 3/4" - - 30.4 1.20 280 4060 1300 18850 150 5.91 1175 79 OPS|OPNS MF+M00910-12
R12-16 25 -16 1" - - 37.5 1.48 280 4060 1150 16670 225 8.86 1690 114 OPS|OPNS MF+M00910-16
R12-20 31 -20 1-1/4" - - 45.9 1.81 210 3040 1000 14500 250 9.84 2270 152 OPS|OPNS MF+M00910-20
R12-24 38 -24 1-1/2" - - 53.3 2.10 175 2530 1000 14500 500 19.69 3120 210 OPS|OPNS MF+M00910-24
R12-32 51 -32 2" - - 66.7 2.63 175 2530 800 11600 630 24.80 4420 296 OPS|OPNS MF+M00910-32
