MAIN APPLICATIONS
Medium pressure hydraulic lines for general hydraulics, return lines of hydraulic systems, applications with installation constraints
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C
RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester-based oils
(up to 212°F I 100°C), glycols and polyglycols , mineral oils in aqueous emulsion, water

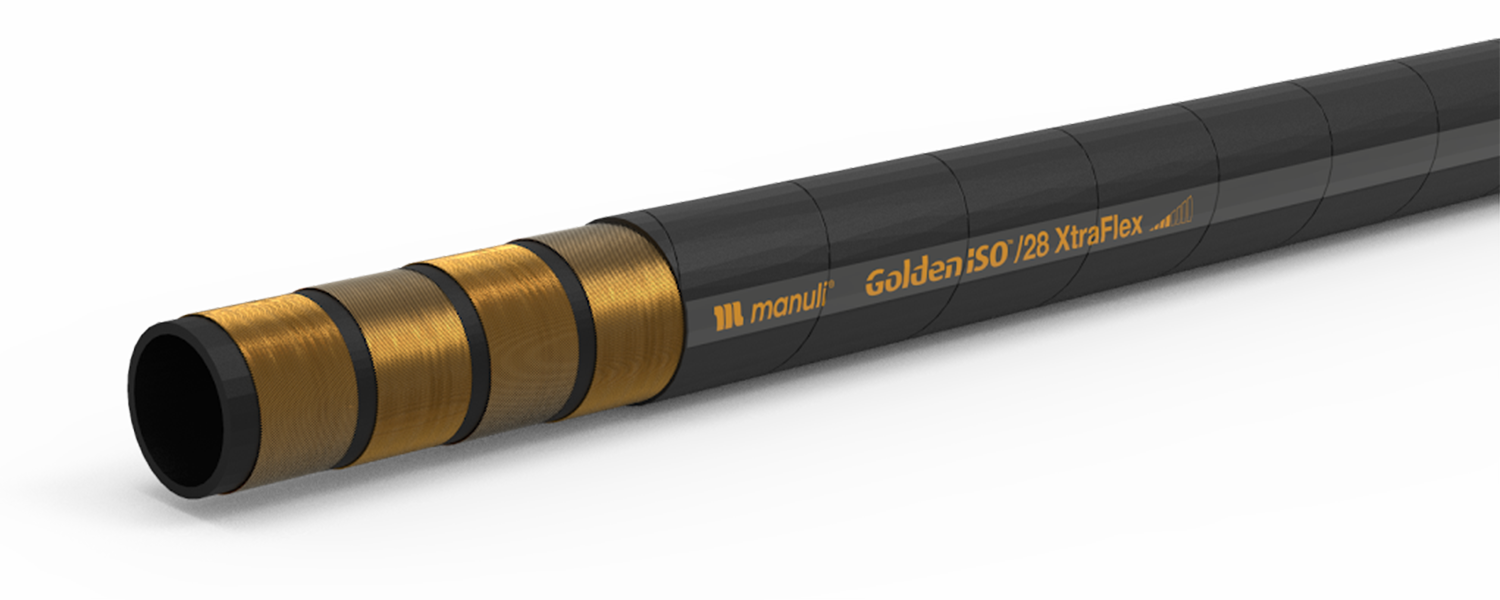

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Four high tensile steel spirals
COVER: Synthetic rubber with high abrasion , ozone , weather and heat resistance
APPLICABLE SPECS: 18752-C/D; JIS K6349-3
TYPE APPROVALS: MSHA
KEY PERFORMANCE
Excellent flexibility (low bending force), also in low temperature applications • Approved 1 Million impulse cycles (MF2000 fittings) • Reduced bend radius • Easy mounting in severe installations • Isobaric pressure rating • G'lio biological and mineral oils compatibility • No-skive fitting solution
|
|
|
|
|
|
|
|
|
|
PART REF.
|
HOSE SIZE
|
R.O.D.
|
O.D.
|
MAX W.P.
|
BURST
PRESSURE
|
MIN. BEND
RADIUS
|
WEIGHT
|
FITTINGS
|
|
DN
|
dash
|
inch
|
mm
|
inch
|
mm
|
inch
|
bar
|
psi
|
bar
|
psi
|
mm
|
inch
|
g/m
|
lb/ft
|
Std1
|
Std2
|
|
Gl21XF-20
|
31
|
-20
|
1-1/4"
|
41.7
|
1.64
|
44.5
|
1.75
|
210
|
3040
|
840
|
12180
|
210
|
8.27
|
2071
|
1.39
|
MF+M00920-20
|
OPK-20
|
GI21XF-24
|
38
|
-24
|
1-1/2"
|
48.9
|
1.93
|
52.1
|
2.05
|
210
|
3040
|
840
|
12180
|
260
|
10.24
|
2989
|
2.01
|
IP+M001500-24
|
SP+M05400-24
|
GI21XF-32
|
51
|
-32
|
2"
|
63.2
|
2.49
|
66.8
|
2.63
|
210
|
3040
|
840
|
12180
|
330
|
12.99
|
4311
|
2.90
|
IP+M01500-32
|
SP+M05400-32
|
