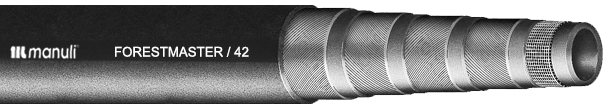

MANULI FORESTMASTER/42
18752-C
Click to Veiw PDF


MAIN APPLICATIONS
High pressure power lines for general hydraulics, designed for forestry machines booms and harvester heads, harsh environments and severe abrasions

CONTINUOUS SERVICE TEMPERATURE RANGE
-50°F / +250°F
-46°C / +121°C

RECOMMENDED FLUIDS
Mineral oils , vegetable oils and synthetic ester-based oils (up to 212°F I 100°C), glycols and polyglycols , mineral oils in aqueous emulsion , water

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Four high tensile steel spirals

COVER: Composite cover with textile reinforcement, realized with high abrasion and ozone resistant synthetic rubber

APPLICABLE SPECS: ISO 18752-C

TYPE APPROVALS: CU-TR; MSHA

KEY PERFORMANCE
Extreme high abrasion resistance • Long life before reinforcement scratching • Special composite cover layer with textile reinforcement for the maximum resistance in harsh environments • Reduced bend radius • Good flexibility in the whole temperature range • Easy mounting in any installation • High impulse resistance according to ISO 18752 requirments



PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT FITTINGS

DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft Std1 Std2
FM42-12 19 -12 3/4" 27.7 1.09 31.9 1.26 420 6090 1680 24360 150 5.91 1331 0.89 IP+M01500-12
FM42-16 25 -16 1" 34.8 1.37 39.0 1.54 420 6090 1680 24360 210 8.27 1970 1.32 IP+M01500-16
