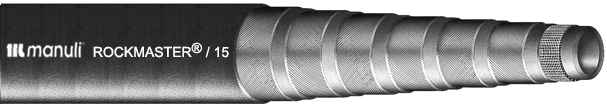

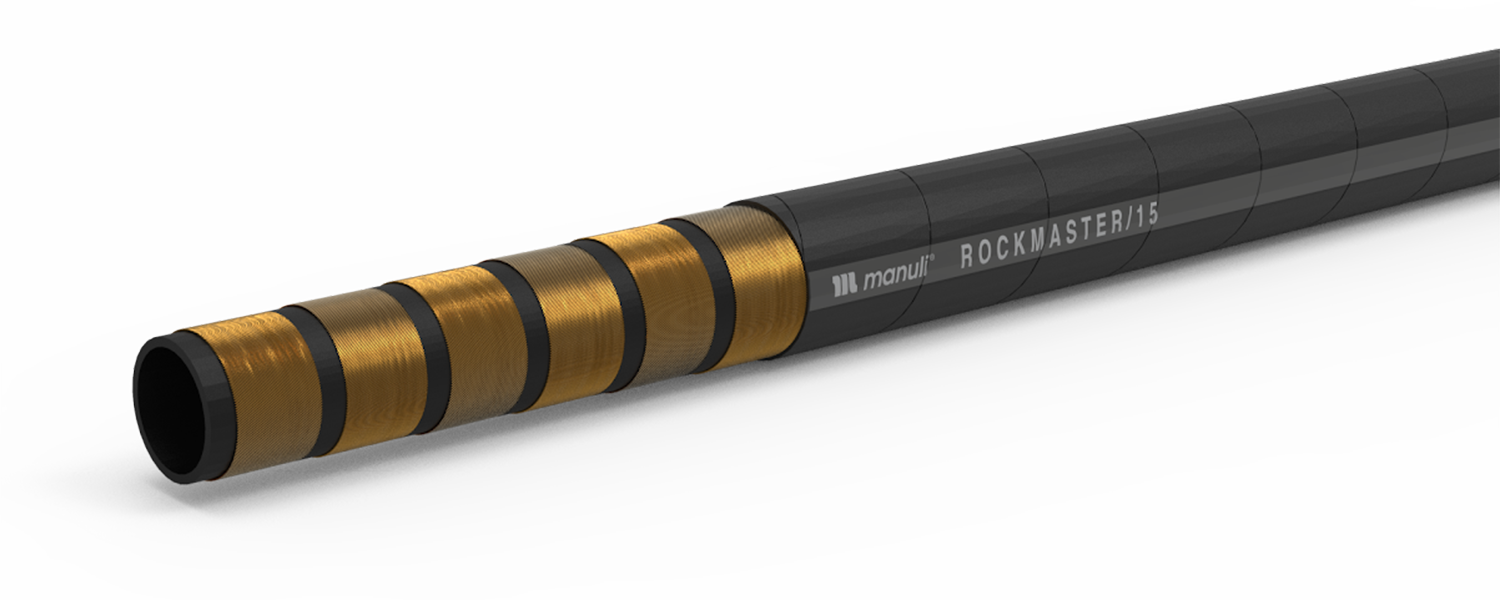

MANULI ROCKMASTER® / 15
ABRASION, WEATHER & HEAT RESISTANCE
Click to Veiw PDF


MAIN APPLICATIONS
Heavy duty power lines, hydrostatic transmissions, in heavy duty environmental conditions, specific installations with severe abrasion conditions, marine applications, underground and open pit mining

CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C

RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester based oils (up to 212°F 100°C), glycols and polyglycols, mineral oils in aqueous emulsion, water

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: Four high tensile steel spirals (DN 19÷25). Six high tensile steel spirals (DN 31÷38)

COVER: Synthetic rubber with high ozone, weather and heat resistance

APPLICABLE SPECS: Exceed SAE 100 R15 - ISO 3862-1 R15

TYPE APPROVALS: ABS, BV, BV (MED), DNV, FRAS, GL, GOST-R, LOBA, LR, MSHA

KEY PERFORMANCE
Approved at 1.000.000 flexing impulse cycles (MF2000® fittings) - Superior abrasion resistance - High ozone and weather resistance - Flame resistance to a wide range of spec. - Antistatic and antitoxic cover - biological and mineral oils compatibility

PART REF. HOSE SIZE
R.O.D. O.D. MAX W.P. BURST
PRESSURE 		MIN. BEND
RADIUS 		WEIGHT MF3000
FITTING 		MF2000
FITTING
DN dash inch mm inch mm inch bar psi bar psi mm inch g/m lb/ft
R15-12 19 -12 3/4" - - 31.0 1.22 420 6090 1750 25370 265 10.43 1430 96 OPS IL+M01500-12
R15-16 25 -16 1" - - 38.1 1.50 420 6090 1750 25370 267 10.51 2040 137 OPS IL+M01500-16
R15-20 31 -20 1-1/4" - - 49.5 1.95 420 6090 1680 24360 267 10.51 3670 246 OPS IL+M01600-20
R15-24 38 -24 1-1/2" - - 57.5 2.26 420 6090 1680 24360 315 12.40 4720 317 OPS IL+M01600-24
