MAIN APPLICATIONS
Low pressure lines, return lines, drain lines
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C
RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol
and polyglycol based oils, synthetic ester based
oils, oils in aqueous emulsion, water

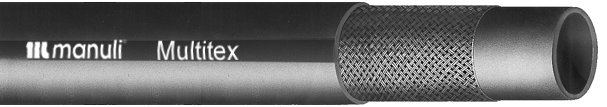

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: One high resistance textile braid
COVER: Environment resistant synthetic rubber
APPLICABLE SPECS: SAE 100 R6 - EN 854 R6/1TE - ISO 4079-1 R6/1TE
TYPE APPROVALS: GOST-R
KEY PERFORMANCE
High flexibility Wide range of fluid compatibility MF2000® Multifit type couplability Push-On hose with MF2000® Push-Lock insert type without ferrule
|
|
|
|
|
|
|
|
|
|
|
|
PART REF.
|
HOSE SIZE
|
R.O.D.
|
O.D.
|
MAX W.P.
|
BURST
PRESSURE
|
MIN. BEND
RADIUS
|
WEIGHT
|
MF3000
FITTING
|
MF2000
FITTING
|
|
|
DN
|
dash
|
inch
|
mm
|
inch
|
mm
|
inch
|
bar
|
psi
|
bar
|
psi
|
mm
|
inch
|
g/m
|
lb/ft
|
|
|
| MT-03 |
5
|
-3
|
3/16"
|
-
|
-
|
11.0
|
0.43
|
35
|
500
|
140
|
2030
|
35
|
1.38
|
90
|
0.06 |
-
|
MF+M00820-03
|
| MT-04 |
6
|
-4
|
1/4"
|
-
|
-
|
12.6
|
0.50
|
30
|
430
|
120
|
1740
|
45
|
1.77
|
115
|
0.08 |
-
|
MF+M00830-04
|
| MT-05 |
8
|
-5
|
5/16"
|
-
|
-
|
14.1
|
0.56
|
30
|
430
|
120
|
1740
|
65
|
2.56
|
140 |
0.09 |
-
|
MF+M00830-05
|
| MT-06 |
10
|
-6
|
3/8"
|
-
|
-
|
15.8
|
0.62
|
30
|
430
|
120
|
1740
|
75
|
2.95
|
160 |
0.11
|
-
|
MF+M00820-06
|
| MT-08 |
12
|
-8
|
1/2"
|
-
|
-
|
19.4
|
0.76
|
30
|
430
|
120
|
1740
|
90
|
3.54
|
210
|
0.14 |
-
|
MF+M00820-08
|
| MT-10 |
16
|
-10
|
5/8"
|
-
|
-
|
23.0
|
0.91
|
30
|
430
|
120
|
1740
|
115
|
4.53
|
290
|
0.19
|
-
|
MF+M00820-10
|
| MT-12 |
19
|
-12
|
3/4"
|
-
|
-
|
26.0
|
1.02
|
30
|
430
|
120
|
1740
|
140
|
5.51
|
325
|
0.22
|
-
|
MF+M00820-12
|
| MT-16 |
25
|
-16
|
1"
|
-
|
-
|
32.0
|
1.26
|
30
|
430
|
120
|
1740
|
150
|
5.91
|
400
|
0.27 |
-
|
MF+M00820-16
|
