MA23
mm Tube to Male BSP Tapered (BSPT) Run Tee
|

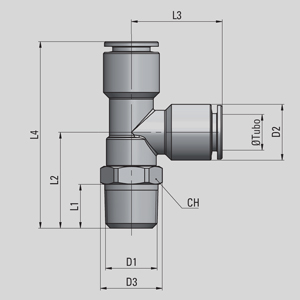

Product Specifications
|
|
Article
|
Part Number
|
Tube OD
|
D1
|
D2
|
D3
|
L1
|
L2
|
L3
|
L4
|
CH
|
lbs
|
|
A0130011
|
MA23-4-1/8
|
4
|
R1/8
|
9
|
14.5
|
7.5
|
19.5
|
19.5
|
39.5
|
13
|
0.05
|
|
A0130012
|
MA23-4-1/4
|
4
|
R1/4
|
9
|
15.5
|
11
|
24
|
19.5
|
43.5
|
14
|
0.06
|
|
A0130031
|
MA23-6-1/8
|
6
|
R1/8
|
12
|
14.5
|
7.5
|
20
|
22
|
42
|
13
|
0.06
|
|
A0130032
|
MA23-6-1/4
|
6
|
R1/4
|
12
|
15.5
|
11
|
24
|
22
|
46
|
14
|
0.07
|
|
A0130041
|
MA23-8-1/8
|
8
|
R1/8
|
14
|
14.5
|
7.5
|
20
|
22.5
|
42.5
|
13
|
0.07
|
|
A0130042
|
MA23-8-1/4
|
8
|
R1/4
|
14
|
15.5
|
11
|
24
|
22.5
|
46.5
|
14
|
0.08
|
|
A0130052
|
MA23-10-1/4
|
10
|
R1/4
|
16
|
20
|
11
|
26.5
|
26
|
52.5
|
18
|
0.11
|
|
A0130053
|
MA23-10-3/8
|
10
|
R3/8
|
16
|
20
|
11.5
|
27
|
26
|
53
|
18
|
0.11
|
|
A0130063
|
MA23-12-3/8
|
12
|
R3/8
|
19
|
22.5
|
11.5
|
30.5
|
28.5
|
59
|
20
|
0.17
|
|
A0130064
|
MA23-12-1/2
|
12
|
R1/2
|
19
|
24.5
|
14
|
33.5
|
28.5
|
62
|
22
|
0.18
|
|
|
|
