MA22
mm Tube to Male BSP Parallel (BSPP) Double Banjo
|

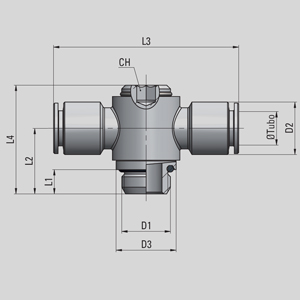

Product Specifications
|
|
Article
|
Part Number
|
Tube OD
|
D1
|
D2
|
D3
|
L1
|
L2
|
L3
|
L4
|
CH
|
lbs
|
|
A0120010
|
MA22-4-M5
|
4
|
M5x0.8
|
9
|
10
|
4
|
11
|
37
|
19
|
3
|
0.03
|
|
A0120011
|
MA22-4-1/8
|
4
|
G1/8
|
9
|
14
|
5
|
15
|
41
|
25.5
|
4
|
0.06
|
|
A0120030
|
MA22-6-M5
|
6
|
M5x0.8
|
12
|
10
|
4
|
11
|
43
|
19
|
3
|
0.04
|
|
A0120031
|
MA22-6-1/8
|
6
|
G1/8
|
12
|
14
|
5
|
15
|
45
|
25.5
|
4
|
0.07
|
|
A0120032
|
MA22-6-1/4
|
6
|
G1/4
|
12
|
18
|
6.5
|
17.5
|
48
|
29
|
5
|
0.1
|
|
A0120041
|
MA22-8-1/8
|
8
|
G1/8
|
14
|
14
|
5
|
15
|
47
|
25.5
|
4
|
0.08
|
|
A0120042
|
MA22-8-1/4
|
8
|
G1/4
|
14
|
18
|
6.5
|
17.5
|
49
|
29
|
5
|
0.1
|
|
A0120052
|
MA22-10-1/4
|
10
|
G1/4
|
16
|
18
|
6.5
|
17.5
|
54
|
29
|
5
|
0.12
|
|
A0120053
|
MA22-10-3/8
|
10
|
G3/8
|
16
|
22
|
7
|
19.5
|
58
|
32.5
|
6
|
0.16
|
|
A0120063
|
MA22-12-3/8
|
12
|
G3/8
|
19
|
22
|
7
|
19.5
|
59
|
32.5
|
6
|
0.17
|
|
A0120064
|
MA22-12-1/2
|
12
|
G1/2
|
19
|
27
|
8.5
|
24
|
63
|
39.5
|
8
|
0.27
|
|
|
|
