MA12
mm Tube to Male BSP Parallel (BSPP)
|

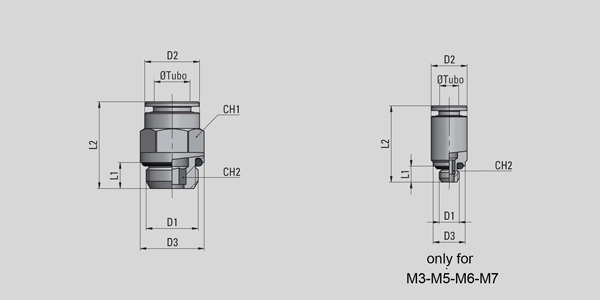

Product Specifications
|
|
Article
|
Part Number
|
Tube OD
|
D1
|
D2
|
D3
|
L1
|
L2
|
CH1
|
CH2
|
lbs
|
|
A0020A00
|
MA12-3-M3
|
3
|
M3x0.5
|
7
|
5,5
|
3
|
14,5
|
-
|
1,5
|
0.002
|
|
A0020000
|
MA12-3-M5
|
3
|
M5x0.8
|
7
|
8
|
4
|
15
|
-
|
2
|
0.004
|
|
A0020010
|
MA12-4-M5
|
4
|
M5x0.8
|
9
|
8
|
4
|
19
|
-
|
2.5
|
0.01
|
|
A0020110
|
MA12-4-M6
|
4
|
M6x1
|
9
|
9
|
4.5
|
19.5
|
-
|
3
|
0.01
|
|
A0020H10
|
MA12-4-M7
|
4
|
M7x1
|
9
|
9
|
5
|
20
|
-
|
3
|
0.01
|
|
A0020011
|
MA12-4-1/8
|
4
|
G1/8
|
9
|
13
|
5
|
16.5
|
9
|
3
|
0.01
|
|
A0020012
|
MA12-4-1/4
|
4
|
G1/4
|
9
|
16
|
6.5
|
18.5
|
9
|
3
|
0.03
|
|
A0020030
|
MA12-6-M5
|
6
|
M5x0.8
|
12
|
8
|
4
|
22
|
-
|
2.5
|
0.02
|
|
A0020130
|
MA12-6-M6
|
6
|
M6x1
|
12
|
9
|
4.5
|
22.5
|
-
|
3
|
0.02
|
|
A0020H30
|
MA12-6-M7
|
6
|
M7x1
|
12
|
9
|
5
|
23
|
-
|
3
|
0.02
|
|
A0020330
|
MA12-6-M12x1.25
|
6
|
M12x1.25
|
12
|
15
|
6.5
|
21
|
12
|
4
|
0.03
|
|
A0020430
|
MA12-6-M12x1.5
|
6
|
M12x1.5
|
12
|
15
|
6.5
|
21
|
12
|
4
|
0.03
|
|
A0020031
|
MA12-6-1/8
|
6
|
G1/8
|
12
|
13.5
|
5
|
19.5
|
12
|
4
|
0.02
|
|
A0020032
|
MA12-6-1/4
|
6
|
G1/4
|
12
|
16
|
6.5
|
19.5
|
12
|
4
|
0.03
|
|
A0020041
|
MA12-8-1/8
|
8
|
G1/8
|
14
|
13
|
5
|
23.5
|
13
|
6
|
0.02
|
|
A0020042
|
MA12-8-1/4
|
8
|
G1/4
|
14
|
16
|
6.5
|
21.5
|
14
|
6
|
0.03
|
|
A0020043
|
MA12-8-3/8
|
8
|
G3/8
|
14
|
20
|
7
|
21
|
14
|
6
|
0.04
|
|
A0020043
|
MA12-8-3/8
|
8
|
G3/8
|
14
|
20
|
7
|
21
|
14
|
6
|
0.04
|
|
A0020044
|
MA12-8-1/2
|
8
|
G1/2
|
14
|
25
|
8.5
|
23
|
14
|
6
|
0.08
|
|
A0020052
|
MA12-10-1/4
|
10
|
G1/4
|
16
|
16
|
6.5
|
27.5
|
15
|
8
|
0.04
|
|
A0020053
|
MA12-10-3/8
|
10
|
G3/8
|
16
|
20
|
7
|
25
|
16
|
8
|
0.05
|
|
A0020054
|
MA12-10-1/2
|
10
|
G1/2
|
16
|
25
|
8.5
|
25.5
|
16
|
8
|
0.07
|
|
A0020062
|
MA12-12-1/4
|
12
|
G1/4
|
19
|
16
|
6.5
|
28.5
|
19
|
8
|
0.06
|
|
A0020063
|
MA12-12-3/8
|
12
|
G3/8
|
19
|
20
|
7
|
28.5
|
19
|
10
|
0.06
|
|
A0020064
|
MA12-12-1/2
|
12
|
G1/2
|
19
|
25
|
8.5
|
26.5
|
19
|
10
|
0.08
|
|
A0020073
|
MA12-14-3/8
|
14
|
G3/8
|
22
|
20
|
7
|
32
|
22
|
10
|
0.06
|
|
A0020074
|
MA12-14-1/2
|
14
|
G1/2
|
22
|
25
|
8.5
|
32
|
22
|
12
|
0.09
|
|
|
|
