MA18
mm Tube to Female 90° BSP Parallel (BSPP)
|

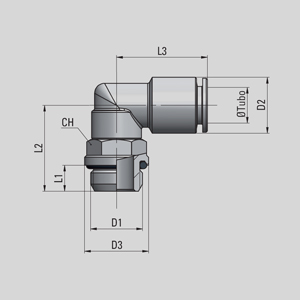

Product Specifications
|
|
Article
|
Part Number
|
Tube OD
|
D1
|
D2
|
D3
|
L1
|
L2
|
L3
|
L4
|
CH
|
lbs
|
|
A0080A00
|
MA18-3-M3
|
3
|
M3x0.5
|
7
|
8
|
3
|
8.5
|
13
|
14
|
2
|
0.01
|
|
A0080000
|
MA18-3-M5
|
3
|
M3x0.8
|
7
|
8
|
4
|
9.5
|
15
|
15
|
2
|
0.02
|
|
A0080010
|
MA18-4-M5
|
4
|
M5x0.8
|
9
|
10
|
4
|
11
|
18.5
|
19
|
3
|
0.02
|
|
A0080011
|
MA18-4-1/8
|
4
|
G1/8
|
9
|
14
|
5
|
15
|
20.5
|
25.5
|
4
|
0.05
|
|
A0080030
|
MA18-6-M5
|
6
|
M5x0.8
|
12
|
10
|
4
|
11
|
21.5
|
19
|
3
|
0.03
|
|
A0080031
|
MA18-6-1/8
|
6
|
G1/8
|
12
|
14
|
5
|
15
|
22.5
|
25.5
|
4
|
0.05
|
|
A0080032
|
MA18-6-1/4
|
6
|
G1/4
|
12
|
18
|
6.5
|
17.5
|
24
|
29
|
5
|
0.09
|
|
A0080041
|
MA18-8-1/8
|
8
|
G1/8
|
14
|
14
|
5
|
15
|
23.5
|
25.5
|
4
|
0.06
|
|
A0080042
|
MA18-8-1/4
|
8
|
G1/4
|
14
|
18
|
6.5
|
17.5
|
24.5
|
29
|
5
|
0.09
|
|
A0080052
|
MA18-10-1/4
|
10
|
G1/4
|
16
|
18
|
6.5
|
17.5
|
27
|
29
|
5
|
0.1
|
|
A0080053
|
MA18-10-3/8
|
10
|
G3/8
|
16
|
22
|
7
|
19.5
|
29
|
32.5
|
6
|
0.14
|
|
A0080063
|
MA18-12-3/8
|
12
|
G3/8
|
19
|
22
|
7
|
19.5
|
29.5
|
32.5
|
6
|
0.15
|
|
A0080064
|
MA18-12-1/2
|
12
|
G1/2
|
19
|
27
|
8.5
|
24
|
31.5
|
39.5
|
8
|
0.3
|
|
|
|
