MA15
mm Tube to Male 90° BSP Tapered (BSPT) Swivel
|

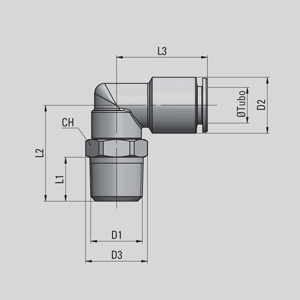

Product Specifications
|
|
Article
|
Part Number
|
Tube OD
|
D1
|
D2
|
D3
|
L1
|
L2
|
L3
|
CH
|
lbs
|
|
A0050011
|
MA15-4-1/8
|
4
|
R1/8
|
9
|
14.5
|
7.5
|
17.5
|
17.5
|
10
|
0.04
|
|
A0050012
|
MA15-4-1/4
|
4
|
R1/4
|
9
|
15.5
|
11
|
24
|
19.5
|
14
|
0.04
|
|
A0050031
|
MA15-6-1/8
|
6
|
R1/8
|
12
|
14.5
|
7.5
|
20
|
22
|
13
|
0.04
|
|
A0050032
|
MA15-6-1/4
|
6
|
R1/4
|
12
|
15.5
|
11
|
24
|
22
|
14
|
0.05
|
|
A0050041
|
MA15-8-1/8
|
8
|
R1/8
|
14
|
14.5
|
7.5
|
20
|
22.5
|
13
|
0.05
|
|
A0050042
|
MA15-8-1/4
|
8
|
R1/4
|
14
|
15.5
|
11
|
24
|
22.5
|
14
|
0.06
|
|
A0050043
|
MA15-8-3/8
|
8
|
R3/8
|
14
|
20
|
11.5
|
27
|
23
|
18
|
0.09
|
|
A0050052
|
MA15-10-1/4
|
10
|
R1/4
|
16
|
20
|
11
|
26.5
|
26
|
18
|
0.08
|
|
A0050053
|
MA15-10-3/8
|
10
|
R3/8
|
16
|
20
|
11.5
|
27
|
26
|
18
|
0.09
|
|
A0050063
|
MA15-12-3/8
|
12
|
R3/8
|
19
|
22.5
|
11.5
|
30.5
|
28.5
|
20
|
0.13
|
|
A0050064
|
MA15-12-1/2
|
12
|
R1/2
|
19
|
24.5
|
14
|
33.5
|
28.5
|
22
|
0.16
|
|
A0050073
|
MA15-14-3/8
|
14
|
R3/8
|
22
|
22.5
|
11.5
|
30.5
|
32
|
20
|
0.15
|
|
A0050074
|
MA15-14-1/2
|
14
|
R1/2
|
22
|
24.5
|
14
|
33.5
|
32
|
22
|
0.16
|
|
|
|
