FF6602-O
FF6602-O - Male O-Ring Face Seal (ORFS) x Female O-Ring Face Seal (ORFS) Swivel Steel Run Tee
Steel Male ORFS x Female ORFS
Swivel Run Tee




Item# Item Name Our Price Qty Add
FF6602-04-04-04-O FF6602-04-04-04-O - 1/4 MORFS X 1/4 FORFS RN T
$7.08
FF6602-06-06-06-O FF6602-06-06-06-O - 3/8 MORFS X 3/8 FORFS RN T
$7.89
FF6602-08-08-08-O FF6602-08-08-08-O - 1/2 MORFS X 1/2 FORFS RN T
$8.41
FF6602-10-10-10-O FF6602-10-10-10-O - 5/8 MORFS X 5/8 FORFS RN T
$13.56
FF6602-12-12-12-O FF6602-12-12-12-O - 3/4 MORFS X 3/4 FORFS RN T
$20.29
FF6602-16-16-12-O FF6602-16-16-12-O - 1 MORFS X 3/4 FORFS RN T
$27.04
FF6602-16-16-16-O FF6602-16-16-16-O - 1 MORFS X 1 FORFS RN T
$27.24
FF6602-20-20-20-O FF6602-20-20-20-O - 1-1/4 MORFS X 1-1/4 FORFS RN T
$60.34
FF6602-24-24-24-O FF6602-24-24-24-O - 1-1/4 MORFS X 1-1/4 FORFS RN T
$104.78
Check the items you wish to purchase, then click

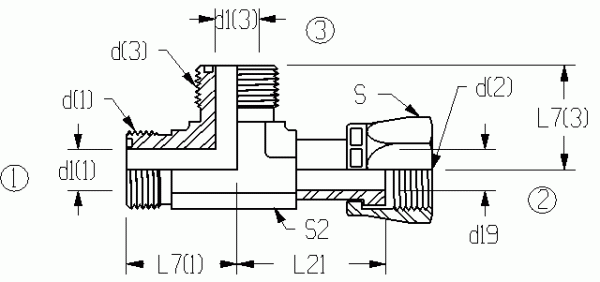

Product Dimensions:
Back to Order Form


Product Specifications
Check Part Number TUBE OD d
(1)
UN/UNF
-2A 		d
(2)
UN/UNF
-2B 		d
(3)
UN/UNF
-2A 		L7
(1) 		L21 L7 S S2 d1
(1) 		d19 d1
(3)
FF6602-04-04-04-O 1/4-1/4-1/4 9/16-18 9/16-18 9/16-18 0.85 1.04 0.85 0.69 0.56 0.17 0.17 0.17
FF6602-06-06-06-O 3/8-3/8-3/8 11/16-16 11/16-16 11/16-16 0.98 1.15 0.98 0.81 0.75 0.26 0.26 0.26
FF6602-06-12-12-O 3/8-3/4-3/4 11/16-16 1 3/16-12 1 3/16-12 1.25 1.82 1.47 1.38 1.18 0.26 0.55 0.61
FF6602-08-08-08-O 1/2-1/2-1/2 13/16-16 13/16-16 13/16-16 1.10 1.49 1.10 0.94 0.75 0.38 0.36 0.38
FF6602-08-08-10-O 1/2-1/2-5/8 13/16-16 13/16-16 1-14 1.21 1.52 1.31 0.94 1.06 0.37 0.35 0.49
FF6602-10-10-06-O 5/8-8/8-3/8 1-14 1-14 11/16-16 1.31 1.62 1.15 1.13 1.06 0.49 0.45 0.26
FF6602-10-10-10-O 5/8-5/8-5/8 1-14 1-14 1-14 1.31 1.62 1.31 1.13 1.06 0.48 0.45 0.48
FF6602-12-12-12-O 3/4-3/4-3/4 1 3/16-12 1 3/16-12 1 3/16-12 1.47 1.82 1.47 1.38 1.19 0.61 0.55 0.61
FF6602-16-16-08-O 1-1-1/2 1 7/16-12 1 7/16-12 13/16-16 1.64 2.10 1.47 1.63 1.42 0.81 0.78 0.38
FF6602-16-16-12-O 1-1-3/4 1 7/16-12 1 7/16-12 1 3/16-12 1.64 2.10 1.62 1.63 1.42 0.81 0.78 0.61
FF6602-16-16-16-O 1-1-1 1 7/16-12 1 7/16-12 1 7/16-12 1.64 2.10 1.64 1.63 1.44 0.81 0.78 0.81
FF6602-20-20-20-O 1 1/4-1 1/4-1 1/4 1 11/16-12 1 11/16-12 1 11/16-12 1.76 2.29 1.76 1.88 1.61 1.02 1.02 1.02
FF6602-24-24-24-O 1 1/2-1 1/2-1 1/2 2-12 2-12 2-12 1.92 2.41 1.92 2.25 1.97 1.26 1.26 1.26
