6806-NWO
6806-NWO - Male O-Ring Boss (ORB) x Male NPT 90 Degree Steel Elbow
Steel Male ORB x Male NPTF
Adjustable 90° Elbow






Item# Item Name Our Price Qty Add
6806-04-02-NWO 6806-04-02-NWO - 1/4 ADJ MSAE X 1/8 MNPT 90
$3.48
6806-04-04-NWO 6806-04-04-NWO - 1/4 ADJ MSAE X 1/4 MNPT 90
$5.10
6806-06-04-NWO 6806-06-04-NWO - 3/8 ADJ MSAE X 1/4 MNPT 90
$5.90
6806-06-06-NWO 6806-06-06-NWO - 3/8 ADJ MSAE X 3/8 MNPT 90
$7.82
6806-08-06-NWO 6806-08-06-NWO - 1/2 ADJ MSAE X 3/8 MNPT 90
$8.60
6806-08-08-NWO 6806-08-08-NWO - 1/2 ADJ MSAE X 1/2 MNPT 90
$17.01
6806-10-08-NWO 6806-10-08-NWO - 5/8 ADJ MSAE X 1/2 MNPT 90
$19.48
6806-12-12-NWO 6806-12-12-NWO - 3/4 ADJ MSAE X 3/4 MNPT 90
$24.87
6806-12-16-NWO 6806-12-16-NWO - 3/4 ADJ MSAE X 1 MNPT 90
$17.10
6806-14-12-NWO 6806-14-12-NWO - 7/8 ADJ MSAE X 3/4 MNPT 90
$22.93
6806-16-12-NWO 6806-16-12-NWO - 1 ADJ MSAE X 3/4 MNPT 90
$19.85
6806-16-16-NWO 6806-16-16-NWO - 1 ADJ MSAE X 1 MNPT 90
$19.81
6806-20-20-NWO 6806-20-20-NWO - 1-1/4 ADJ MSAE X 1-1/4 MNPT 90
$39.74
6806-24-24-NWO 6806-24-24-NWO - 1-1/2 ADJ MSAE X 1-1/2 MNPT 90
$58.89
6806-32-32-NWO 6806-32-32-NWO - 2 ADJ MSAE X 2 MNPT 90
$205.13
Check the items you wish to purchase, then click

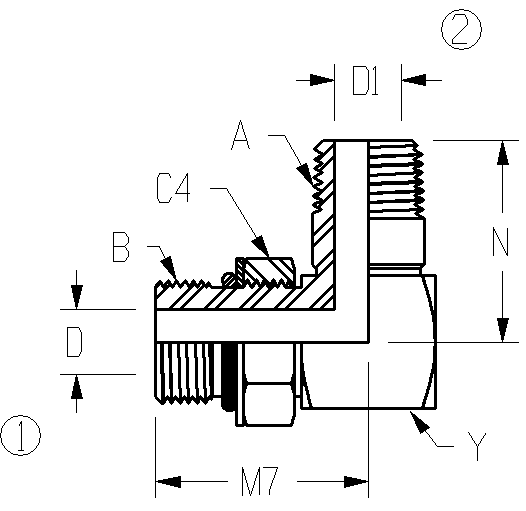

Product Dimensions:
Back to Order Form
View Catalog


Product Specifications
Check Part Number B
UN/UNF-2A
A
NPTF
M7 N C4 Y D D1
6806-02-04-NWO 5/16-24 1/4-18 1.03 1.09 0.56 0.63 0.06 0.28
6806-04-02-NWO 7/16-20 1/8-27 1.03 0.78 0.56 0.50 0.17 0.19
6806-04-04-NWO 7/16-20 1/4-18 1.09 1.09 0.56 0.63 0.17 0.28
6806-04-06-NWO 7/16-20 3/8-18 1.19 1.22 0.56 0.81 0.17 0.41
6806-05-02-NWO 1/2-20 1/8-27 1.13 0.81 0.63 0.56 0.23 0.19
6806-06-04-NWO 9/16-18 1/4-18 1.25 1.09 0.69 0.63 0.30 0.28
6806-06-06-NWO 9/16-18 3/8-18 1.34 1.22 0.69 0.81 0.30 0.41
6806-06-08-NWO 9/16-18 1/2-14 1.40 1.47 0.69 0.94 0.30 0.53
6806-08-06-NWO 3/4-16 3/8-18 1.45 1.22 0.88 0.81 0.39 0.41
6806-08-08-NWO 3/4-16 1/2-14 1.51 1.47 0.88 0.94 0.39 0.53
6806-10-08-NWO 7/8-14 1/2-14 1.70 1.47 1.00 0.94 0.48 0.53
6806-12-08-NWO 1 1/16-12 1/2-14 1.94 1.56 1.25 1.13 0.61 0.53
6806-12-12-NWO 1 1/16-12 3/4-14 1.94 1.59 1.25 1.13 0.61 0.72
6806-12-16-NWO 1 1/16-12 1-11 1/2 2.07 1.97 1.25 1.38 0.61 0.94
6806-14-12-NWO 1 3/16-12 3/4-14 2.00 1.66 1.38 1.25 0.72 0.72
6806-16-12-NWO 1 5/16-12 3/4-14 2.05 1.72 1.50 1.38 0.84 0.72
6806-16-16-NWO 1 5/16-12 1-11 1/2 2.05 1.97 1.50 1.38 0.84 0.94
6806-20-16-NWO 1 5/8-12 1-11 1/2 2.25 2.16 1.88 1.75 1.08 0.94
6806-20-20-NWO 1 5/8-12 1 1/4-11 1/2 2.25 2.38 1.88 1.75 1.08 1.25
6806-20-24-NWO 1 5/8-12 1 1/2-11 1/2 2.38 2.64 1.88 2.00 1.08 1.50
6806-24-24-NWO 1 7/8-12 1 1/2-11 1/2 2.39 2.64 2.13 2.00 1.31 1.50
