Home > Steel Adapters > JIC >

2607
2607 - Male NPT x Male JIC 37 Degree Flare Steel Run Tee
Steel Male JIC x Male NPTF
Run Tee



Item# Item Name Our Price Qty Add
2607-04-02-02 2607-04-02-02 - 1/4 MJIC X 1/8 MNPT X 1/8 MNPT RN T
$5.26
2607-06-06-06 2607-06-06-06 - 3/8 MJIC X 3/8 MNPT X 3/8 MNPT RN T
$12.59
2607-08-08-08 2607-08-08-08 - 1/2 MJIC X 1/2 MNPT X 1/2 MNPT RN T
$11.94
2607-12-12-12 2607-12-12-12 - 3/4 MJIC X 3/4 MNPT X 3/4 MNPT RN T
$27.87
Check the items you wish to purchase, then click

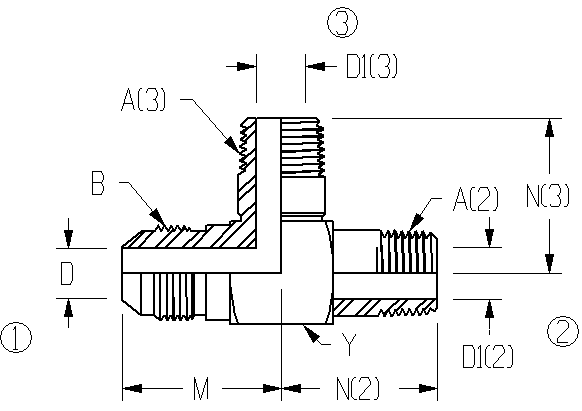

Product Dimensions:
Back to Order Form
View Catalog


Product Specifications
Check Part Number TUBE OD B
UN/UNF-2A 		A (2)
NPTF 		A (3)
NPTF 		M N (2) N (3) Y D D1 (2) D1 (3)
2607-04-02-02 1/4 7/16-20 1/8-27 1/8-27 0.89 0.78 0.78 0.50 0.17 0.19 0.19
2607-06-04-04 3/8 9/16-18 1/4-18 1/4-18 1.06 1.09 1.09 0.63 0.30 0.28 0.28
2607-06-06-06 3/8 9/16-18 3/8-18 3/8-18 1.16 1.22 1.22 0.81 0.30 0.41 0.41
2607-08-08-08 1/2 3/4-16 1/2-14 1/2-14 1.31 1.47 1.47 0.94 0.39 0.53 0.53
2607-10-08-08 5/8 7/8-14 1/2-14 1/2-14 1.45 1.47 1.47 0.94 0.48 0.53 0.53
2607-12-12-12 3/4 1 1/16-12 3/4-14 3/4-14 1.66 1.59 1.59 1.13 0.61 0.72 0.72
2607-16-16-16 1 1 5/16-12 1-11 1/2 1-11 1/2 1.81 1.97 1.97 1.38 0.84 0.94 0.94
