1603 - Female NPT Swivel Steel Union Tee
Steel Female NPTF
Swivel Tee Union



Item# Item Name Our Price Qty Add
1603-02-02-02 1603-02-02-02 - 1/8 FNPT SW UN T
$23.01
1603-04-04-04 1603-04-04-04 - 1/4 FNPT SW UN T
$21.62
1603-06-06-06 1603-06-06-06 - 3/8 FNPT SW UN T
$11.87
1603-08-08-08 1603-08-08-08 - 1/2 FNPT SW UN T
$23.34
1603-12-12-12 1603-12-12-12 - 3/4 FNPT SW UN T
$24.58
1603-16-16-16 1603-16-16-16 - 1 FNPT SW UN T
$38.79
1603-20-20-20 1603-20-20-20 - 1-1/4 FNPT SW UN T
$62.39
Check the items you wish to purchase, then click

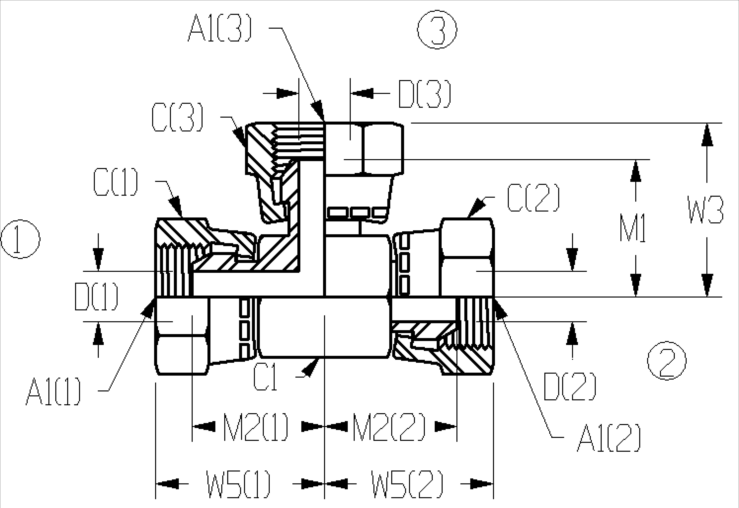

Product Dimensions:
Back to Order Form
View Catalog


Product Specifications
Check Part Number A1 (1)
NPSM 		A1 (2)
NPSM 		A1 (3)
NPSM 		W3 M1 W5 (2) M2 (2) W5 (3) M2 (3) C (1) C (2) C (3) C1 D (1) D (2)
1603-02-02-02 1/8-27 1/8-27 1/8-27 0.85 0.70 0.85 0.70 0.85 0.70 0.56 0.56 0.56 0.56 0.13 0.13
1603-04-04-04 1/4-18 1/4-18 1/4-18 0.98 0.79 1.05 0.86 1.05 0.86 0.69 0.69 0.69 0.69 0.22 0.22
1603-06-06-06 3/8-18 3/8-18 3/8-18 1.20 0.95 1.11 0.86 1.11 0.86 0.88 0.88 0.88 0.88 0.33 0.33
1603-08-08-08 1/2-14 1/2-14 1/2-14 1.33 1.00 1.44 1.11 1.44 1.11 1.00 1.00 1.00 1.00 0.45 0.45
1603-12-12-12 3/4-14 3/4-14 3/4-14 1.60 1.26 1.73 1.39 1.73 1.39 1.25 1.25 1.25 1.25 0.63 0.63
1603-16-16-16 1-11 1/2 1-11 1/2 1-11 1/2 1.77 1.40 1.90 1.53 1.90 1.53 1.50 1.50 1.50 1.50 0.84 0.84
1603-20-20-20 1 1/4-11 1/2 1 1/4-11 1/2 1 1/4-11 1/2 2.09 1.67 2.08 1.66 2.08 1.66 1.88 1.88 1.88 1.88 1.01 1.01
