Home > Steel Adapters > NPTF >

5406
5406 | NPT Pipe Thread Bushing - SAE 140140
Steel Male NPTF x Female NPTF Bushing
SAE J514 140140



Item# Item Name Our Price Qty Add
5406-04-02 5406-04-02 - 1/4 MNPT X 1/8 FNPT BSHNG
$1.37
5406-06-02 5406-06-02 - 3/8 MNPT X 1/8 FNPT BSHNG
$3.34
5406-06-04 5406-06-04 - 3/8 MNPT X 1/4 FNPT BSHNG
$2.46
5406-08-02 5406-08-02 - 1/2 MNPT X 1/8 FNPT BSHNG
$3.55
5406-08-04 5406-08-04 - 1/2 MNPT X 1/4 FNPT BSHNG
$2.52
5406-08-06 5406-08-06 - 1/2 MNPT X 3/8 FNPT BSHNG
$2.28
5406-12-02 5406-12-02 - 3/4 MNPT X 1/8 FNPT BSHNG
$20.76
5406-12-04 5406-12-04 - 3/4 MNPT X 1/4 FNPT BSHNG
$3.48
5406-12-06 5406-12-06 - 3/4 MNPT X 3/8 FNPT BSHNG
$3.67
5406-12-08 5406-12-08 - 3/4 MNPT X 1/2 FNPT BSHNG
$4.03
5406-16-04 5406-16-04 - 1 MNPT X 1/4 FNPT BSHNG
$7.95
5406-16-06 5406-16-06 - 1 MNPT X 3/8 FNPT BSHNG
$7.01
5406-16-08 5406-16-08 - 1 MNPT X 1/2 FNPT BSHNG
$6.97
5406-16-12 5406-16-12 - 1 MNPT X 3/4 FNPT BSHNG
$6.40
5406-20-04 5406-20-04 - 1-1/4 MNPT X 1/4 FNPT BSHNG
$51.27
5406-20-06 5406-20-06 - 1-1/4 MNPT X 3/8 FNPT BSHNG
$33.60
5406-20-08 5406-20-08 - 1-1/4 MNPT X 1/2 FNPT BSHNG
$23.11
5406-20-12 5406-20-12 - 1-1/4 MNPT X 3/4 FNPT BSHNG
$13.19
5406-20-16 5406-20-16 - 1-1/4 MNPT X 1 FNPT BSHNG
$13.51
5406-24-08 5406-24-08 - 1-1/2 MNPT X 1/2 FNPT BSHNG
$32.09
5406-24-12 5406-24-12 - 1-1/2 MNPT X 3/4 FNPT BSHNG
$30.72
5406-24-16 5406-24-16 - 1-1/2 MNPT X 1 FNPT BSHNG
$30.10
5406-24-20 5406-24-20 - 1-1/2 MNPT X 1-1/4 FNPT BSHNG
$30.07
5406-32-12 5406-32-12 - 2 MNPT X 3/4 FNPT BSHNG
$38.15
5406-32-16 5406-32-16 - 2 MNPT X 1 FNPT BSHNG
$42.00
5406-32-20 5406-32-20 - 2 MNPT X 1-1/4 FNPT BSHNG
$47.46
5406-32-24 5406-32-24 - 2 MNPT X 1-1/2 FNPT BSHNG
$45.79
Check the items you wish to purchase, then click

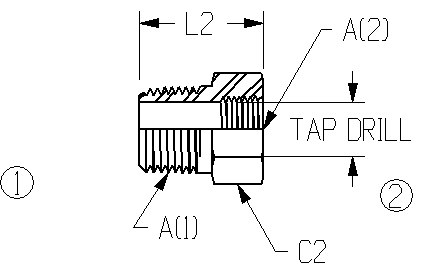

Product Dimensions:
Back to Order Form
View Catalog


Product Specifications
Check Part Number A (1)
NPTF 		A (2)
NPTF 		L2 C2 Tap Drill Aeroquip # Parker #
5406-04-02 1/4-18 1/8-27 0.85 0.63 0.33 2081-4-2S 1/4 x 1/8 PTR-S
5406-06-02 3/8-18 1/8-27 0.85 0.75 0.33 2081-6-2S 3/8 x 1/8 PTR-S
5406-06-04 3/8-18 1/4-18 0.85 0.75 0.43 2081-6-4S 3/8 x 1/4 PTR-S
5406-08-02 1/2-14 1/8-27 1.10 0.88 0.33 2081-8-2S 1/2 x 1/8 PTR-S
5406-08-04 1/2-14 1/4-18 1.10 0.88 0.43 2081-8-4S 1/2 x 1/4 PTR-S
5406-08-06 1/2-14 3/8-18 1.10 0.88 0.57 2081-8-6S 1/2 x 3/8 PTR-S
5406-12-02 3/4-14 1/8-27 1.17 1.13 0.33 2081-12-2S 3/4 x 1/8 PTR-S
5406-12-04 3/4-14 1/4-18 1.17 1.13 0.43 2081-12-4S 3/4 x 1/4 PTR-S
5406-12-06 3/4-14 3/8-18 1.17 1.13 0.57 2081-12-6S 3/4 x 3/8 PTR-S
5406-12-08 3/4-14 1/2-14 1.17 1.13 0.70 2081-12-8S 3/4 x 1/2 PTR-S
5406-16-02 1-11 1/2 1/8-27 1.36 1.38 0.33 2081-16-2S 1 x 1/8 PTR-S
5406-16-04 1-11 1/2 1/4-18 1.36 1.38 0.43 2081-16-4S 1 x 1/4 PTR-S
5406-16-06 1-11 1/2 3/8-18 1.36 1.38 0.57 2081-16-6S 1 x 3/8 PTR-S
5406-16-08 1-11 1/2 1/2-14 1.36 1.38 0.70 2081-16-8S 1 x 1/2 PTR-S
5406-16-12 1-11 1/2 3/4-14 1.36 1.38 0.91 2081-16-12S 1 x 3/4 PTR-S
5406-20-04 1 1/4-11 1/2 1/4-18 1.47 1.75 0.43 2081-20-4S 1 1/4 x 1/4 PTR-S
5406-20-06 1 1/4-11 1/2 3/8-18 1.47 1.75 0.57 2081-20-6S 1 1/4 x 3/8 PTR-S
5406-20-08 1 1/4-11 1/2 1/2-14 1.47 1.75 0.70 2081-20-8S 1 1/4 x 1/2 PTR-S
5406-20-12 1 1/4-11 1/2 3/4-14 1.47 1.75 0.91 2081-20-12S 1 1/4 x 3/4 PTR-S
5406-20-16 1 1/4-11 1/2 1-11 1/2 1.47 1.75 1.14 2081-20-16S 1 1/4 x 1 PTR-S
5406-24-06 1 1/2-11 1/2 3/8-18 1.57 2.00 0.57 2081-24-6S 1 1/2 x 3/8 PTR-S
5406-24-08 1 1/2-11 1/2 1/2-14 1.57 2.00 0.70 2081-24-8S 1 1/2 x 1/2 PTR-S
5406-24-12 1 1/2-11 1/2 3/4-14 1.57 2.00 0.91 2081-24-12S 1 1/2 x 3/4 PTR-S
5406-24-16 1 1/2-11 1/2 1-11 1/2 1.57 2.00 1.14 2081-24-16S 1 1/2 x 1 PTR-S
5406-24-20 1 1/2-11 1/2 1 1/4-11 1/2 1.57 2.00 1.48 2081-24-20S 1 1/2 x 1 1/4 PTR-S
5406-32-12 2-11 1/2 3/4-14 1.75 2.50 0.91 2081-32-12S 2 x 3/4 PTR-S
5406-32-16 2-11 1/2 1-11 1/2 1.75 2.50 1.14 2081-32-16S 2 x 1 PTR-S
5406-32-20 2-11 1/2 1 1/4-11 1/2 1.75 2.50 1.48 2081-32-20S 2 x 1 1/4 PTR-S
5406-32-24 2-11 1/2 1 1/2-11 1/2 1.75 2.50 1.72 2081-32-24S 2 x 1 1/2 PTR-S
