SS5503
SS5503 - Male NPT x Female NPT 45 Degree Stainless Steel Elbow
Stainless Steel Male
NPTF x Female NPTF 45° Elbow
SAE J514 140339



Item# Item Name Our Price Qty Add
SS5503-02-02 SS5503-02-02 - 1/8 MNPT X 1/8 FNPT 45 S.S.
$34.26
SS5503-04-04 SS5503-04-04 - 1/4 MNPT X 1/4 FNPT 45 S.S.
$45.92
SS5503-06-06 SS5503-06-06 - 3/8 MNPT X 3/8 FNPT 45 S.S.
$30.01
SS5503-08-08 SS5503-08-08 - 1/2 MNPT X 1/2 FNPT 45 S.S.
$78.89
SS5503-12-12 SS5503-12-12 - 3/4 MNPT X 3/4 FNPT 45 S.S.
$90.01
SS5503-16-16 SS5503-16-16 - 1 MNPT X 1 FNPT 45 S.S.
$128.26
SS5503-20-20 SS5503-20-20 - 1-1/4 MNPT X 1-1/4 FNPT 45 S.S.
$211.13
Check the items you wish to purchase, then click

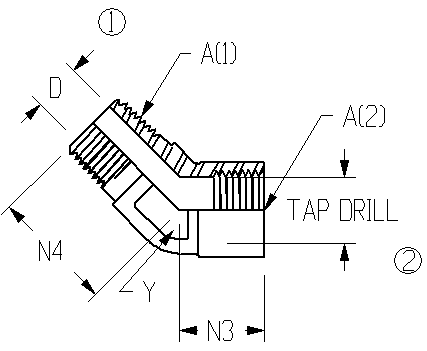

Product Dimensions:
Back to Order Form


Product Specifications
Check Part Number A (1)
NPTF 		A (2)
NPTF 		N4 N3 Y D Tap Drill Aeroquip # Parker #
SS5503-02-02 1/8-27 1/8-27 0.72 0.47 0.56 0.19 0.33 259-2088-2-2 1/8 CD45-SS
SS5503-04-04 1/4-18 1/4-18 1.05 0.62 0.75 0.28 0.43 259-2088-4-4 1/4 CD45-SS
SS5503-06-06 3/8-18 3/8-18 1.06 0.72 0.88 0.41 0.57 259-2088-6-6 3/8 CD45-SS
SS5503-08-08 1/2-14 1/2-14 1.34 0.91 1.06 0.53 0.70 259-2088-8-8 1/2 CD45-SS
SS5503-12-12 3/4-14 3/4-14 1.38 0.97 1.31 0.72 0.91 259-2088-12-12 3/4 CD45-SS
SS5503-16-16 1-11 1/2 1-11 1/2 1.72 1.12 1.63 0.94 1.14 259-2088-16-16 1 CD45-SS
SS5503-20-20 1 1/4-11 1/2 1 1/4-11 1/2 1.80 1.63 1.88 1.25 1.48 259-2088-20-20 1 1/4 CD45-SS
