PN11
Tube to Male NPTF
|

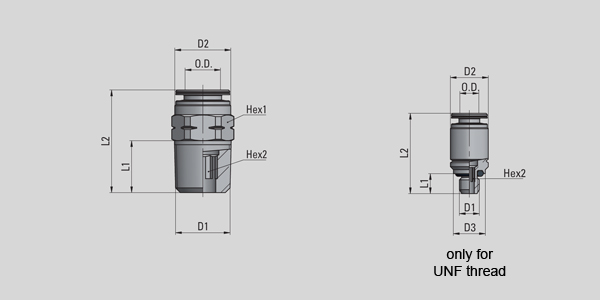

Product Specifications
|
|
Article
|
Part Number
|
Tube OD
|
D1 UNF
|
D1 NPTF
|
D2
|
D3
|
L1
|
L2
|
HEX 1
|
HEX 2
|
lbs
|
|
20010000
|
PN11-1/8-10-32
|
1/8
|
10-32
|
-
|
.276
|
.315
|
.197
|
.657
|
-
|
3/32
|
0.01
|
|
20010010
|
PN11-5/32-10-32
|
5/32
|
10-32
|
-
|
.374
|
.315
|
.197
|
.787
|
-
|
3/32
|
0.01
|
|
20010030
|
PN11-1/4-10-32
|
1/4
|
10-32
|
-
|
.472
|
.315
|
.197
|
.925
|
-
|
3/32
|
0.02
|
|
20010001
|
PN11-1/8-1/8
|
1/8
|
-
|
1/8
|
.276
|
-
|
.335
|
.728
|
7/16
|
3/32
|
0.02
|
|
20010011
|
PN11-5/32-1/8
|
5/32
|
-
|
1/8
|
.374
|
-
|
.335
|
.728
|
7/16
|
1/8
|
0.02
|
|
20010012
|
PN11-5/32-1/4
|
5/32
|
-
|
1/4
|
.374
|
-
|
.512
|
.945
|
9/16
|
1/8
|
0.04
|
|
20010031
|
PN11-1/4-1/8
|
1/4
|
-
|
1/8
|
.472
|
-
|
.335
|
.866
|
1/2
|
5/32
|
0.02
|
|
20010032
|
PN11-1/4-1/4
|
1/4
|
-
|
1/4
|
.472
|
-
|
.512
|
.965
|
9/16
|
5/32
|
0.04
|
|
20010033
|
PN11-1/4-3/8
|
1/4
|
-
|
3/8
|
.472
|
-
|
.512
|
1.004
|
11/16
|
5/32
|
-
|
|
20010041
|
PN11-5/16-1/8
|
5/16
|
-
|
1/8
|
.551
|
-
|
.335
|
1.043
|
9/16
|
3/16
|
0.03
|
|
20010042
|
PN11-5/16-1/4
|
5/16
|
-
|
1/4
|
.551
|
-
|
.512
|
1.004
|
9/16
|
1/4
|
0.04
|
|
20010043
|
PN11-5/16-3/8
|
5/16
|
-
|
3/8
|
.551
|
-
|
.512
|
.984
|
11/16
|
1/4
|
0.06
|
|
20010051
|
PN11-3/8-1/8
|
3/8
|
-
|
1/8
|
.630
|
-
|
.335
|
1.122
|
11/16
|
3/16
|
0.05
|
|
20010052
|
PN11-3/8-1/4
|
3/8
|
-
|
1/4
|
.630
|
-
|
.512
|
1.260
|
11/16
|
1/4
|
0.06
|
|
20010053
|
PN11-3/8-3/8
|
3/8
|
-
|
3/8
|
.630
|
-
|
.512
|
1.004
|
11/16
|
5/16
|
0.06
|
|
20010054
|
PN11-3/8-1/2
|
3/8
|
-
|
1/2
|
.630
|
-
|
.669
|
1.201
|
7/8
|
5/16
|
0.12
|
|
20010062
|
PN11-1/2-1/4
|
1/2
|
-
|
1/4
|
.787
|
-
|
.512
|
1.358
|
13/16
|
5/16
|
0.08
|
|
20010063
|
PN11-1/2-3/8
|
1/2
|
-
|
3/8
|
.787
|
-
|
.512
|
1.161
|
13/16
|
13/32
|
0.06
|
|
20010064
|
PN11-1/2-1/2
|
1/2
|
-
|
1/2
|
.787
|
-
|
.669
|
1.201
|
7/8
|
13/32
|
0.1
|
|
|
|
