24-SWOL(1162) - Voss Male Tube Metric x Female Adjustable Tube Metric Run Tee
Male Tube Metric x Female Tube Metric
Adjustable Run Tee



Item# Item Name Our Price Qty Add
24-SWOL-L10-P 24-SWOL-L10-P - 10L ADJ STUD CPLNG RN T
$18.18
24-SWOL-L12-P 24-SWOL-L12-P - 12L ADJ STUD CPLNG RN T
$20.10
24-SWOL-L15 24-SWOL-L15 - 15L ADJ STUD CPLNG RN T
$22.41
24-SWOL-L18 24-SWOL-L18 - 18L ADJ STUD CPLNG RN T
$33.85
24-SWOL-L22 24-SWOL-L22 - 22L ADJ STUD CPLNG RN T
$43.43
24-SWOL-L28 24-SWOL-L28 - 28L ADJ STUD CPLNG RN T
$63.76
24-SWOL-L35 24-SWOL-L35 - 35L ADJ STUD CPLNG RN T
$99.10
24-SWOL-L8-P 24-SWOL-L8-P - 8L ADJ STUD CPLNG RN T
$16.68
Check the items you wish to purchase, then click

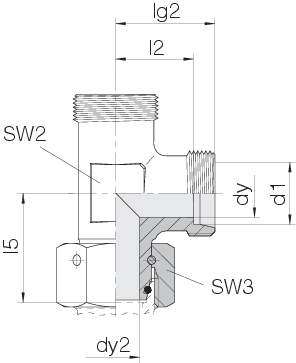

Product Dimensions:
Back to Order Form
View Catalog


Product Specifications
Check Order designation Order No. Series
Tube OD
d1 		Pressure dy dy2 lg2 l2 l5 SW2 SW3 kg/100
ca.
24-SWOL-L8-P 1162 08 2058 L 8 PN 500 6 4.5 21 14 27.5 14 17 7.0
24-SWOL-L10-P 1162 13 2058 L 10 PN 500 8 6 22 15 29 17 19 9.6
24-SWOL-L12-P 1162 18 2058 L 12 PN 400 10 8 24 17 29.5 19 22 12.0
24-SWOL-L15 1162 23 2058 L 15 PN 400 12 10 28 21 32.5 19 27 15.4
24-SWOL-L18 1162 28 2058 L 18 PN 400 15 13 31 23.5 35.5 24 32 21.3
24-SWOL-L22 1162 33 2058 L 22 PN 250 19 17 35 27.5 38.5 27 36 28.1
24-SWOL-L28 1162 38 2058 L 28 PN 250 24 22 38 30.5 41.5 36 41 39.2
24-SWOL-L35 1162 43 2058 L 35 PN 250 30 28 45 34.5 51 41 50 67.7
