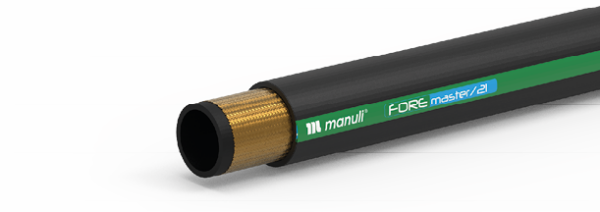

Foremaster/21
Click to View PDF


APPLICATIONS & FLUIDS

  • Low and medium pressure hydraulic lines with installation constraints, pilot lines, return, drain and suction lines
  • Mineral oils, vegetable oils and synthetic ester based oils (up to 100°C/212°F), glycols and polyglycols, mineral oils in aqueous emulsion, water

CONTINUOUS SERVICE TEMPERATURE RANGE
-46 °C, -50 °F
121 °C, 250 °F

TUBE: Oil resistant synthetic rubber

REINFORCEMENT: One wire braid (DN 6-12). Two wire braid (DN 16-25)

COVER: R.O.C.
Synthetic rubber with extreme abrasion and ozone resistance

APPLICABLE SPECS: ISO 18752-C; Exceeds SAE J517 Type 100R17 & ISO 11237-R17

TYPE APPROVALS: MSHA; CU-TR

KEY FEATURES

  • Extreme abrasion resistance
  • Impact and scratch resistant cover
  • Very low bend radius to suit restricted space installations
  • Highly robust and compact hose structure compared to rated pressure
  • High resistance to environmental agents
  • Vacuum resistance according to SAE 100R4 requirements
