SS6505
SS6505
Stainless Steel Male
NPTF x Female JIC Swivel




Item# Item Name Our Price Qty Add
SS6505-04-04 SS6505-04-04 - 1/4 MNPT X 1/4 FJIC SW S.S.
$49.44
SS6505-04-06 SS6505-04-06 - 1/4 MNPT X 3/8 FJIC SW S.S.
$51.56
SS6505-06-06 SS6505-06-06 - 3/8 MNPT X 3/8 FJIC SW S.S.
$63.54
SS6505-06-08 SS6505-06-08 - 3/8 MNPT X 1/2 FJIC SW S.S.
$57.95
SS6505-08-08 SS6505-08-08 - 1/2 MNPT X 1/2 FJIC SW S.S.
$174.84
SS6505-12-12 SS6505-12-12 - 3/4 MNPT X 3/4 FJIC SW S.S.
$93.53
SS6505-16-16 SS6505-16-16 - 1 MNPT X 1 FJIC SW S.S.
$100.23
SS6505-20-20 SS6505-20-20 - 1-1/4 MNPT X 1-1/4 FJIC SW S.S.
$230.86
SS6505-24-24 SS6505-24-24 - 1-1/2 MNPT X 1-1/2 FJIC SW S.S.
$249.33
Check the items you wish to purchase, then click

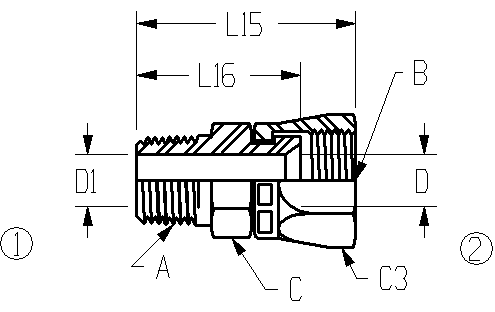

Product Dimensions:
Back to Order Form


Product Specifications
Check Part Number TUBE OD A
NPTF 		B
UN/UNF-2B 		L15 L16 C C3 D1 D Aeroquip # Request Info
SS6505-02-04 1/4 1/8-27 7/16-20 1.34 1.00 0.44 0.56 0.17 259-2018-2-4 4 F6X-SS
SS6505-02-06 3/8 1/8-27 9/16-18 1.53 1.16 0.56 0.69 0.30 259-2018-2-6 6-2 F6X-SS
SS6505-04-04 1/4 1/4-18 7/16-20 1.53 1.19 0.56 0.56 0.17 259-2018-4-4 4-4 F6X-SS
SS6505-04-05 5/16 1/4-18 1/2-20 1.63 1.34 0.56 0.63 0.23 259-2018-4-5 5-4 F6X-SS
SS6505-04-06 3/8 1/4-18 9/16-18 1.72 1.34 0.56 0.69 0.28 0.30 259-2018-4-6 6 F6X-SS
SS6505-04-08 1/2 1/4-18 3/4-16 1.73 1.31 0.81 0.88 0.28 0.39 259-2018-4-8 8-4 F6X-SS
SS6505-06-06 3/8 3/8-18 9/16-18 1.72 1.34 0.75 0.69 0.30 259-2018-6-6 6-6 F6X-SS
SS6505-06-08 1/2 3/8-18 3/4-16 1.73 1.31 0.81 0.88 0.39 259-2018-6-8 8 F6X-SS
SS6505-08-08 1/2 1/2-14 3/4-16 1.90 1.48 0.88 0.88 0.39 259-2018-8-8 8-8 F6X-SS
SS6505-08-10 5/8 1/2-14 7/8-14 2.28 1.78 0.94 1.00 0.48 259-2018-8-10 10 F6X-SS
SS6505-08-12 3/4 1/2-14 1 1/16-12 2.26 1.70 1.13 1.25 0.53 0.61 259-2018-8-12 12-8 F6X-SS
SS6505-12-12 3/4 3/4-14 1 1/16-12 2.26 1.70 1.13 1.25 0.61 259-2018-12-12 12 F6X-SS
SS6505-16-16 1 1-11 1/2 1 5/16-12 2.56 1.97 1.38 1.50 0.84 259-2018-16-16 16 F6X-SS
SS6505-20-20 1 1/4 1 1/4-11 1/2 1 5/8-12 2.66 2.03 1.69 2.00 1.08 259-2018-20-20 20 F6X-SS
SS6505-24-24 1 1/2 1 1/2-11 1/2 1 7/8-12 2.94 2.21 2.00 2.25 1.31 259-2018-24-24 24 F6X-SS
SS6505-32-32 2 2-11 1/2 2 1/2-12 3.59 2.65 2.50 2.88 1.78 259-2018-32-32 32 F6X-SS
